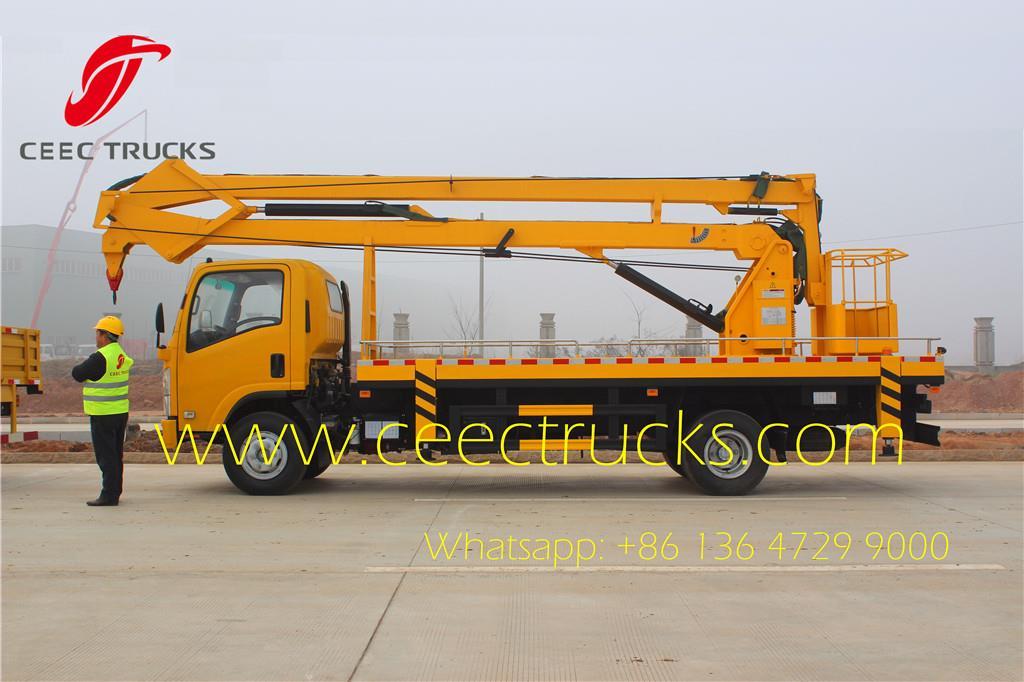

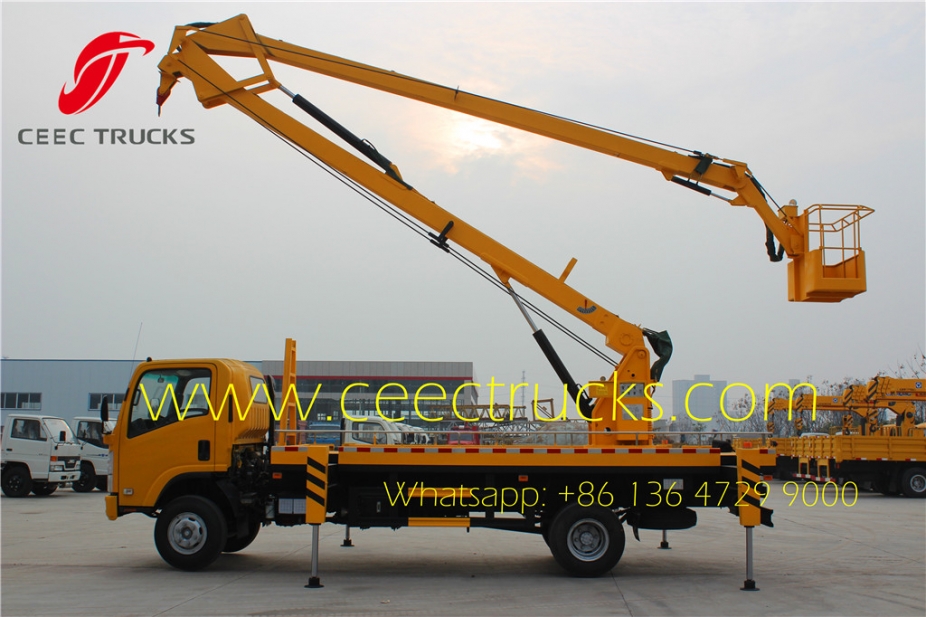

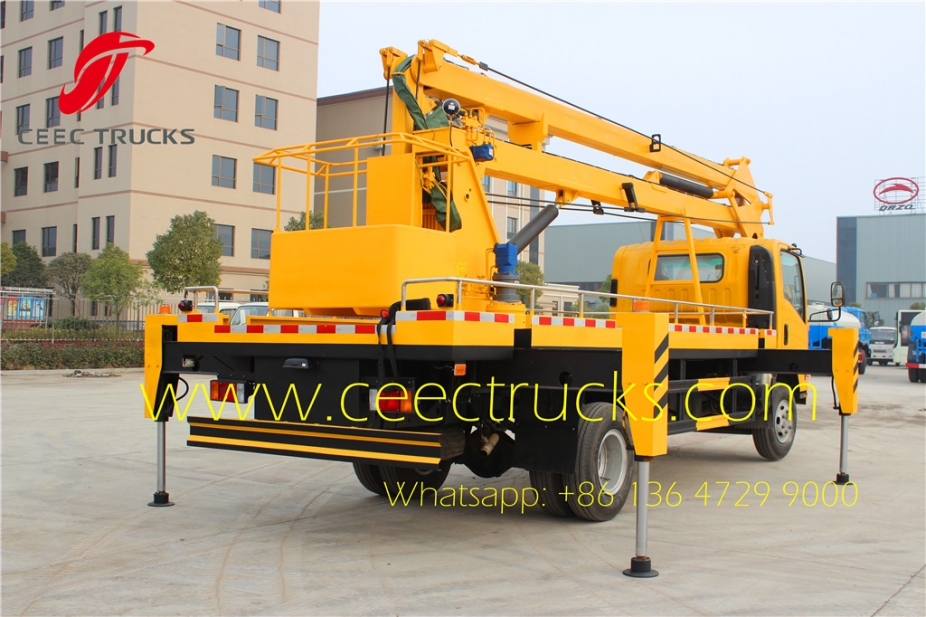

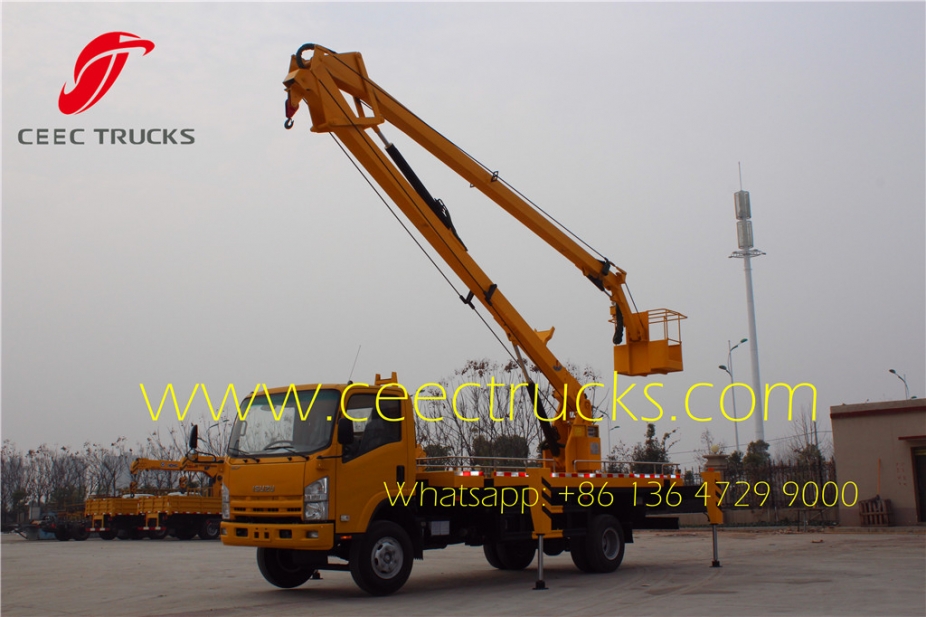

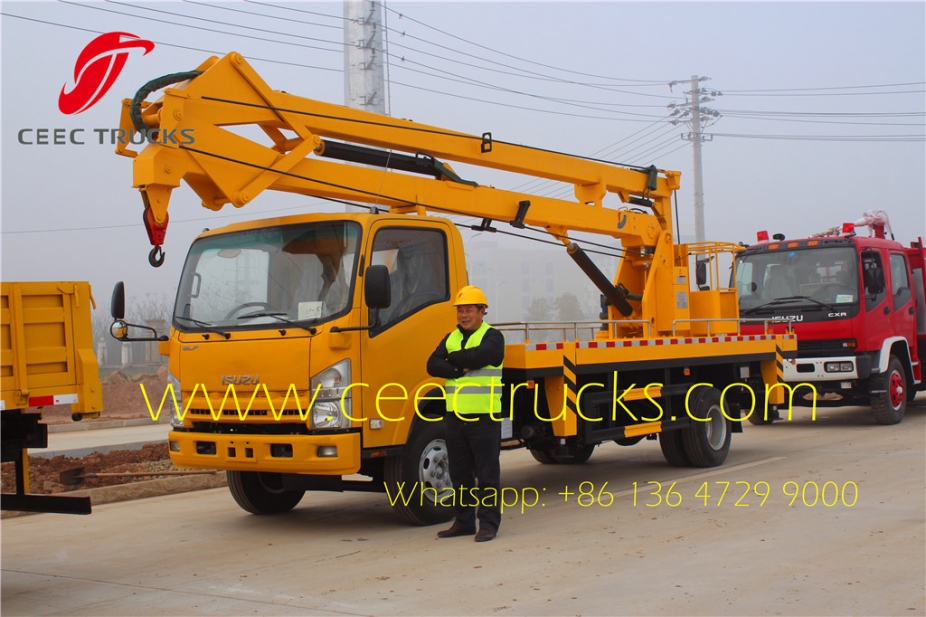

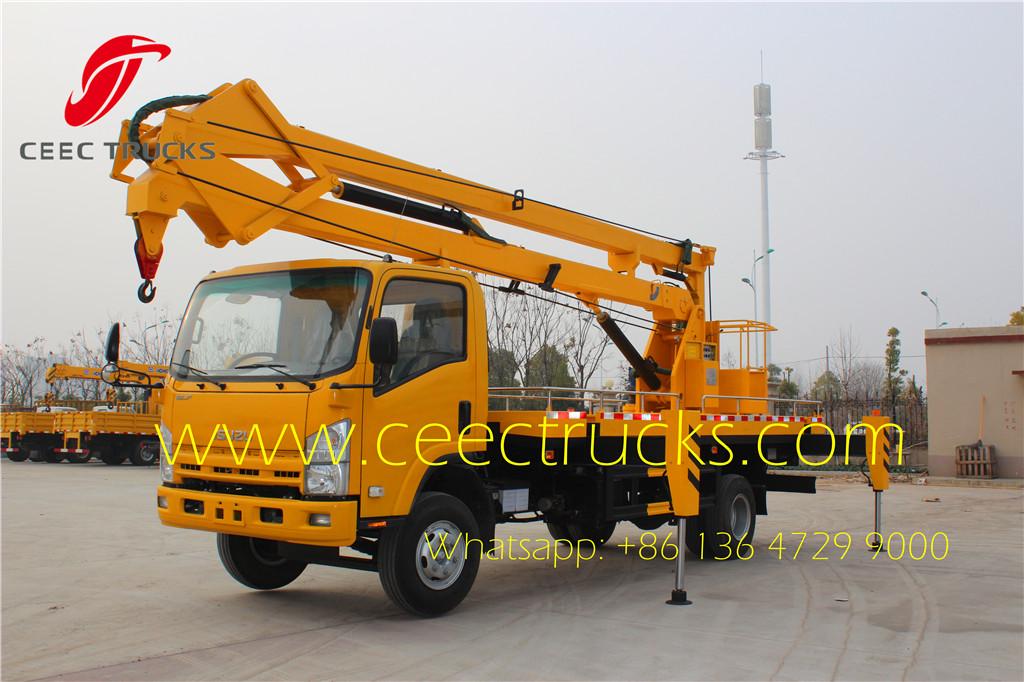

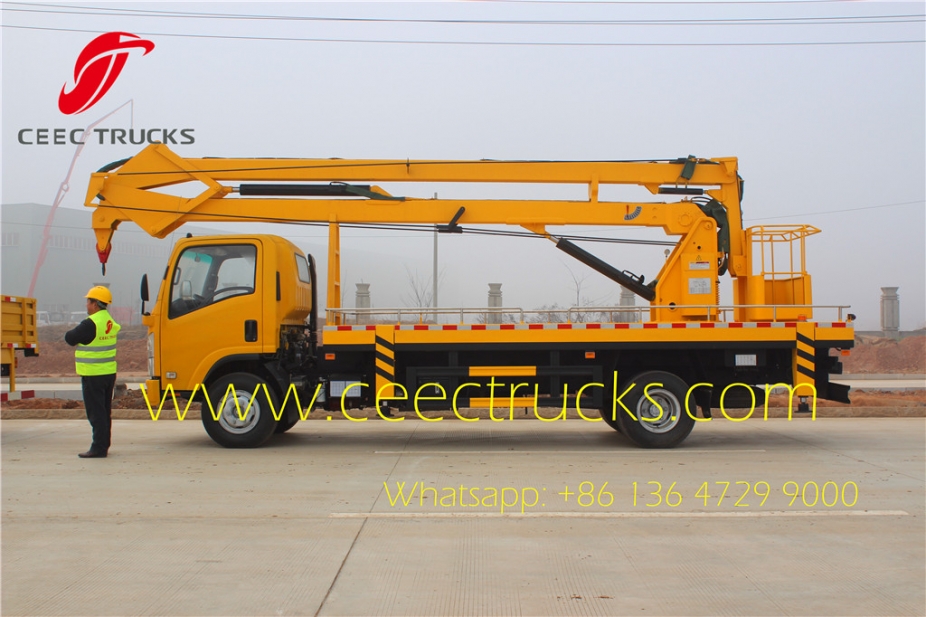

20 DaysISUZU 18 m Hydraulic Lifting Aerial Work Platform Truck
ISUZU aerial work platform truck mainly use Japanese technology 4*2 chassis, with Left Hand Drive model for most countries over the world. The 18m high lifting platform truck equipped ISUZU 4HK1-TCG40 engine, 190 HP super powerful. MLD 6-shift manual gearbox special satisfy human driving feeling. Myanmar hydraulic lifting platform maximum lifting height can be up to 18m, suitable for street lamp maintenance, AD board washing, and some other place for high aerial working.
Phillippines export ISUZU 14-19 m aerial work platform trucks features:
◆ ISUZU LHD 4*2 chassis, 4HK1-TC engine 190HP, MLD 6-shift manual gearbox
◆ Can be operated at both turret and platform with all English version control plate
◆ Step less speed regulation for safety operation
◆ Imported key components, higher reliability, excellent property and long life-span.
◆ Larger span of trigger, higher stability
◆ Urgent power for emergency, very useful equipment
◆ ISUZU work platform operation height : 12M, 14M, 16M, 18M, 20M, 22M

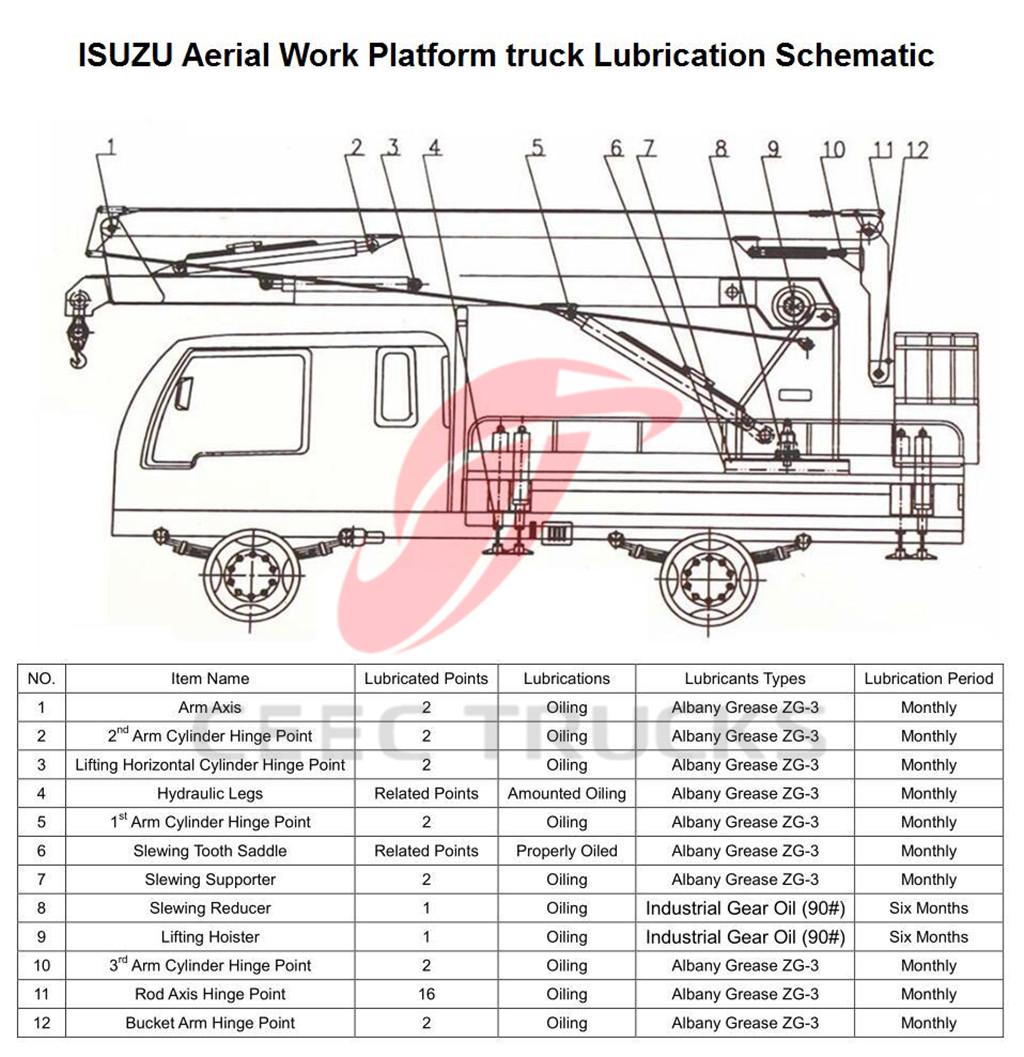

ISUZU 18 m aerial work platform lubrication suggestion:
Similar Key Words: ISUZU 18 m aerial platform truck, isuzu hydraulic lifting platform, beiben 20 m high altitude platform, dongfeng 16 m aerial work platform, Isuzu work platform Myanmar, Fiji 19 m aerial work platform truck
| ISUZU Aerial Platform Truck (14-18M) | ||
| General | Vehicle Brand | CEEC TRUCKS |
| Chassis Brand | ISUZU | |
| Overall Dimension | 8100 x 2280 x 3300 mm | |
| GVW / Kerb Weight | 9,400 kg / 7,560 kg | |
| Cab | Cab Capacity | 2+3 persons allowed |
| Air Conditioner | With air conditioner | |
| Engine | Fuel Type | Diesel |
| Engine Brand | ISUZU engine, 4HK1-TCG40 | |
| Power | 190 Ps (140KW) | |
| Displacement | 5193 ml | |
| Emission Standard | Euro IV | |
| Chassis | Drive Type | 4X2, left hand drive |
| Transmission | ISUZU MLD transmission, 6-forward gears & 1 reverse, no overhaul within 500,000km | |
| Wheelbase/No. of axle | 3360 mm / 2 | |
| Tyre Specification | 7.00-16 or 7.00R16 | |
| Tyre Number | 6 tyres and 1 spare tyre | |
| Max Speed | 95 km/h | |
| Paint | Metallic paint | |
| Superstructure | Cage Rated Capacity | 200 kg |
| Working Height | 14-18 M | |

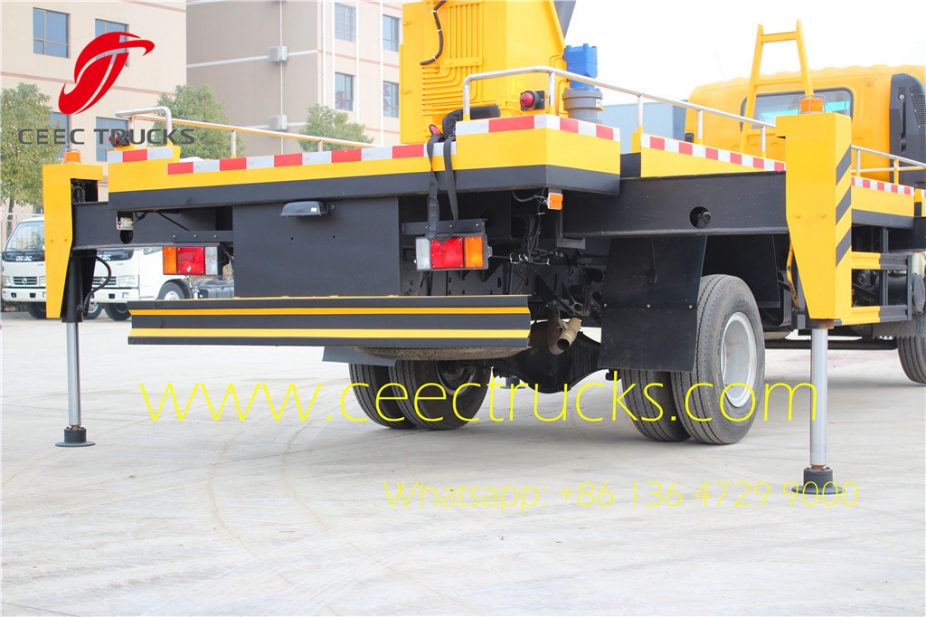

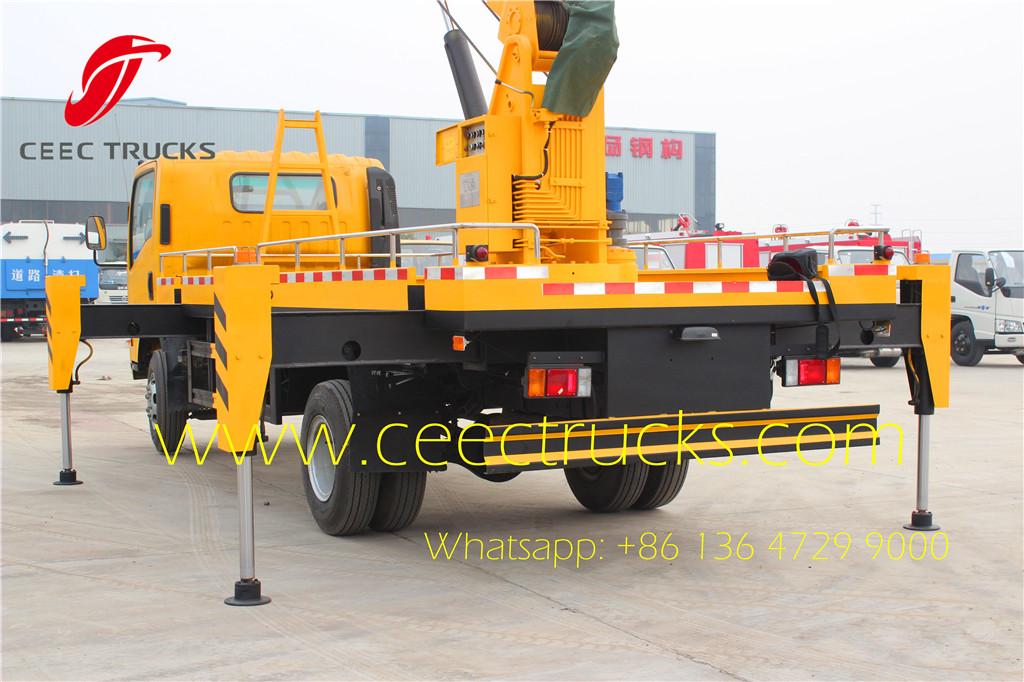

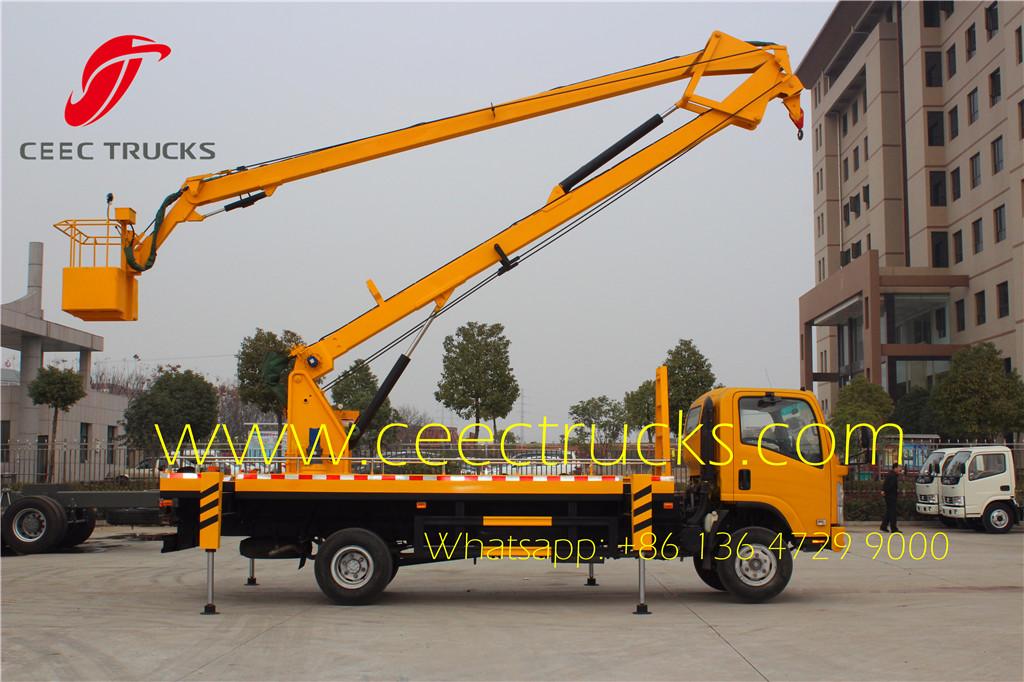

| Outriggers | 4pcs, H-type; Hydraulically extend and retract | |
| Slewing | 360° continuous rotation with base turntable | |

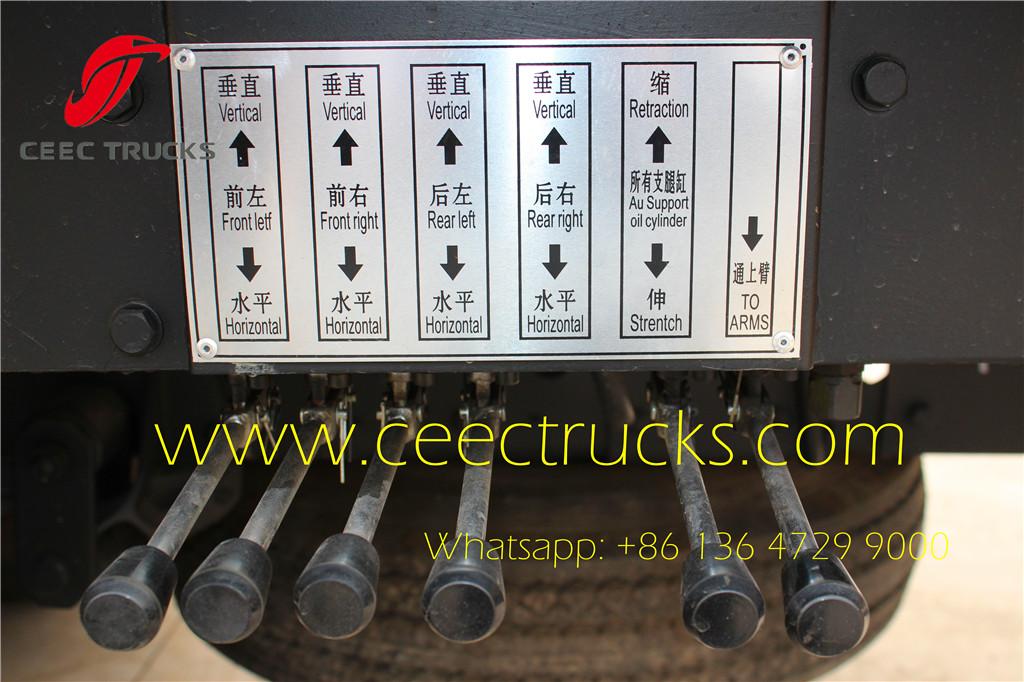

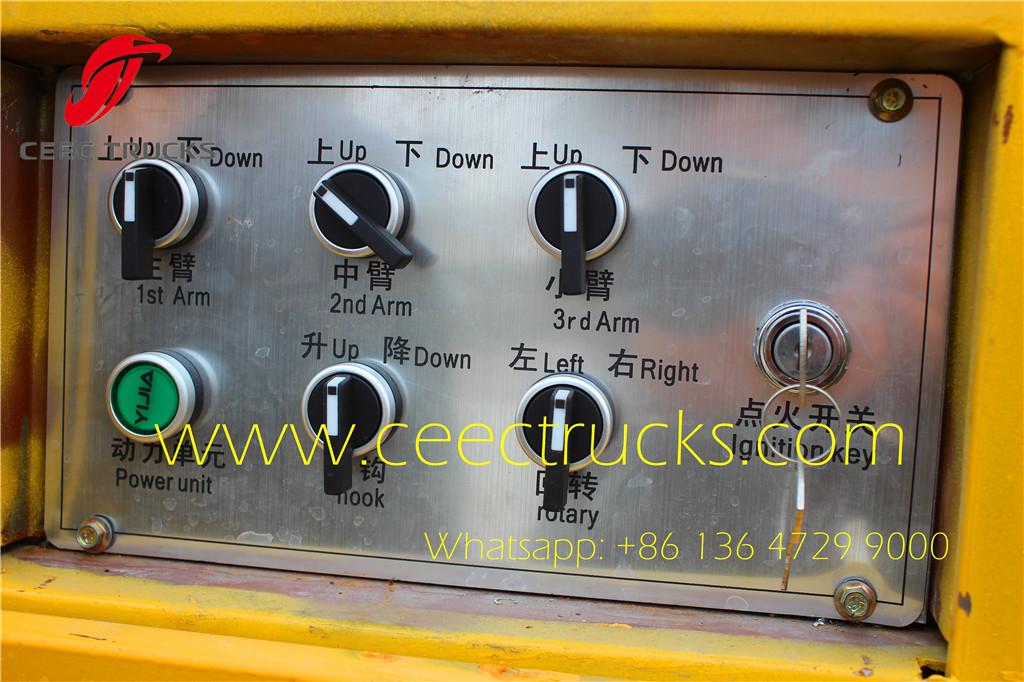

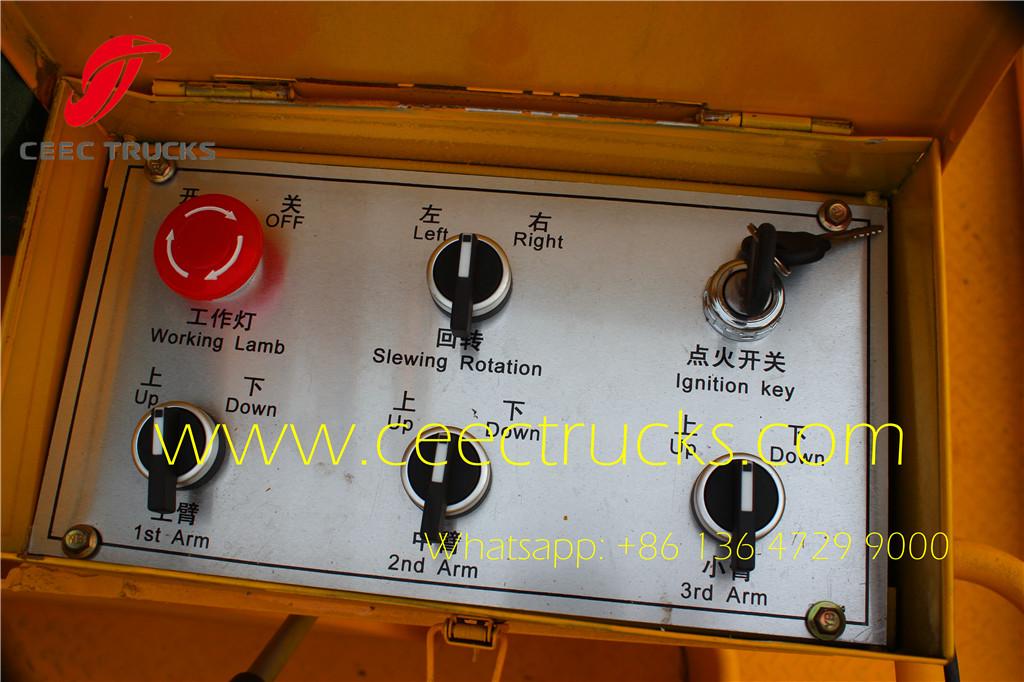

| Control | Control both on the ground and in the cage | |
| Emergency electrical/manual pump is equipped to operate the equipment in case of engine failure. | ||
| Emergency stop switches at base and operator’s cage. | ||

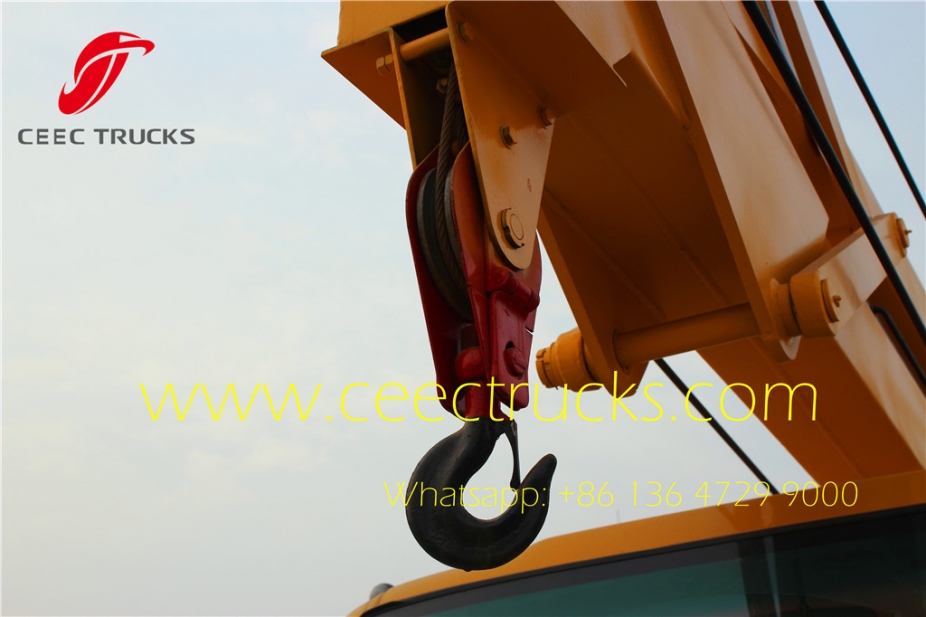

| Optional | Insulated cage; Cargo box; Hoist hook with cables can be equipped for the function of a crane. | |
CEEC Recommend environmental protection truck series
| ISUZU 4 CBM garbage compactor truck | ISUZU 8CBM compression trucks | Dongfeng 20 CBM refuse compactor | ISUZU aerial work platform |
|
|
|
|
|
| ISUZU 4 CBM road sweeper | ISUZU 8 CBM sweeper truck | ISUZU fire fighting truck | Dongfeng high pressure jetting truck |
|
|
|
|
|
| Dongfeng vacuum suction truck | Beiben Cesspit Emptier | Dongfeng skip loader truck | Beiben swing arm truck |
|
|
|
|
|
| Beiben 20 CBM water truck | Dongfeng 20 CBM water tanker | Beiben Roll on Roll off Truck | Beiben fuel tanker truck |
|
|
|
|
|
Save
★ Japanese technology ISUZU 4*2 chassis, equipped original ISUZU 4HK1-TCG40 engine, with 190 ps
★ ISUZU MLD 6-shift manual gearbox, 6 forward & 1 reverse
★ Expert manufacturer for producing Aerial Work Platform over 10 years with rich experience
★ High strength Q345 or Q550 material lifting arms, safety and long service life
★ 12 months free fast moving spare parts
★ All English version control box, panel, and owner's manual, for easy understanding
★ Authorized isuzu trucks exporter.
★ Training service for isuzu aerial platform trucks in us CEEC factory
Totally 2 untis ISUZU road sweeper truck export to Nigeria, we warmly welcome and picked the road sweeper trucks buyer up at Wuhan TIANHE airport. Nigeria customers carefully examed every detailed parts of the sweeper trucks, and testing driving the ISUZU sweeping trucks, take pictures for all parts of the Isuzu sweeper trucks. and made suggestions for updating the road sweepers.

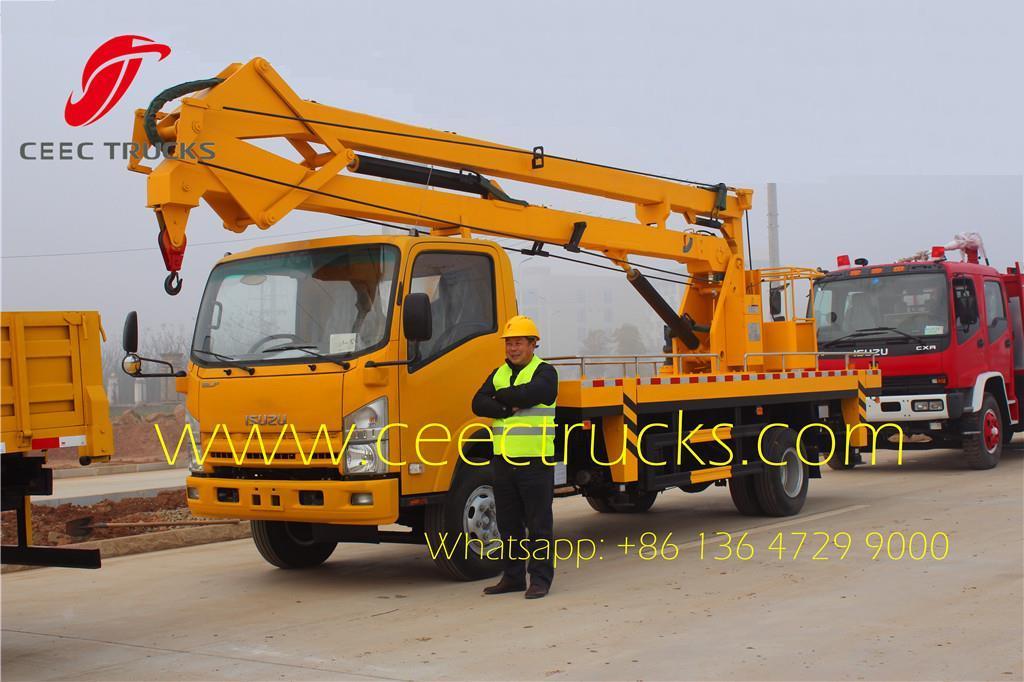

(CEEC practised drivers waiting for engineers last testing for ISUZU 19 m Aerial Work Platform Truck before deliver to Shanghai Seaport)

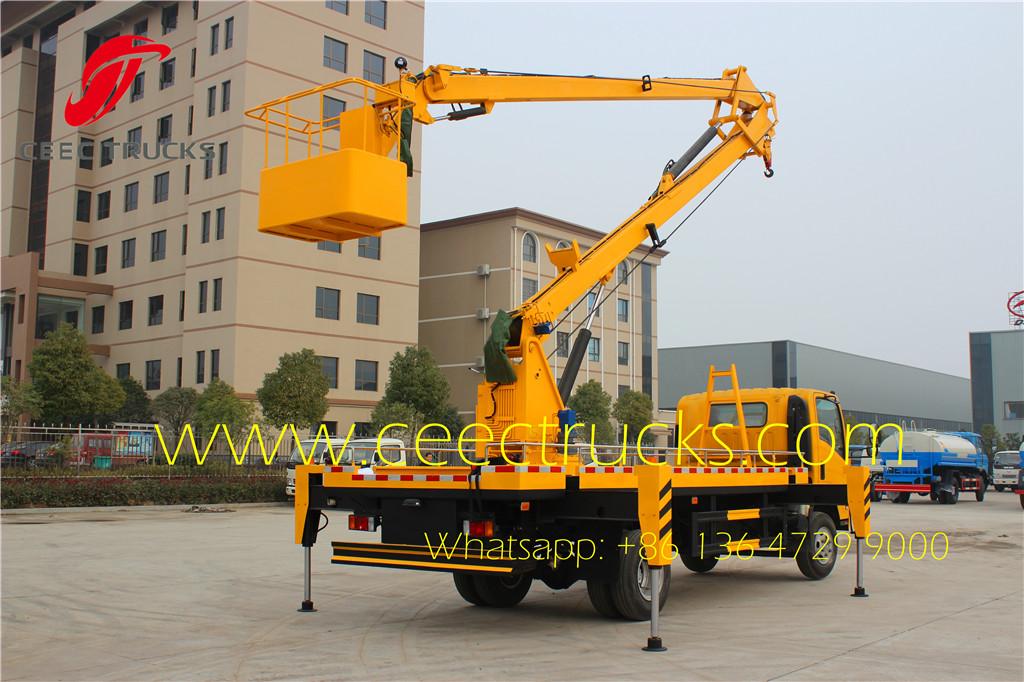

(Myanmar ISUZU 18 m hydraulic lifting work platform will ship from Shanghai Seaport China to Yangon Seaport Myanmar.)
