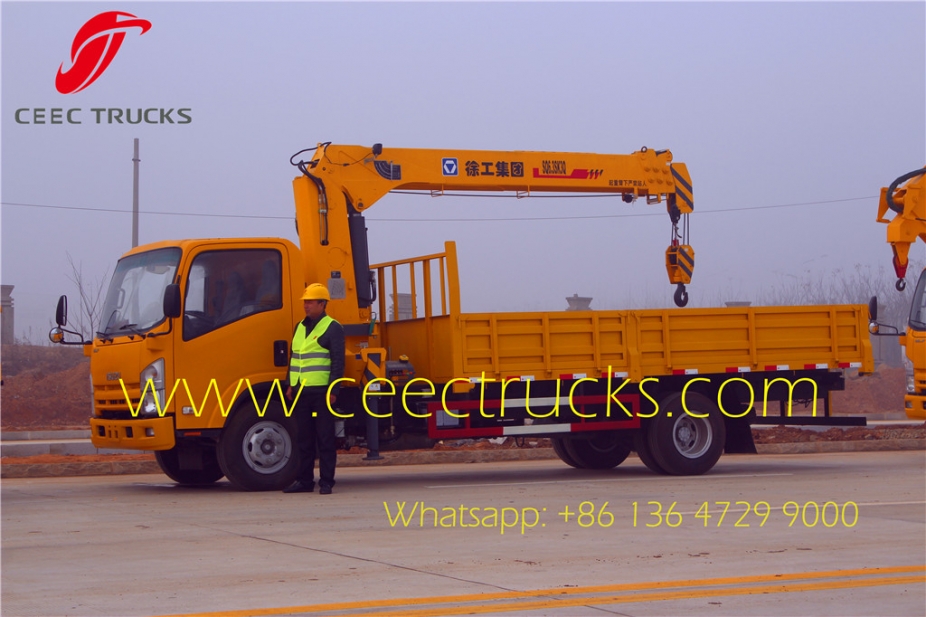

best isuzu 6300kg boom crane mounted truck

6.3 Tonluk Kamyon Montajlı Vinç

ISUZU 6.3 T kamyon üstü vinç, Japon teknolojisi ISUZU 4*2 şasi, 190HP süper güçlü, MLD 6 vitesli manuel şanzıman, XCMG 6.3T düz bomlu vinç, Myanmar, Yangon'a ihracat

Ödeme:
T/T, West Union
Fiyat:
$45,000/59,000
Ürün oranı:
China CEEC
Nakliye limanı:
Shanghai Seaport
Kurşun zamanı:
15 Days

Şimdi soruşturma

ISUZU 6.3 T Boom Crane Mounted Cargo Truck export to Dubai

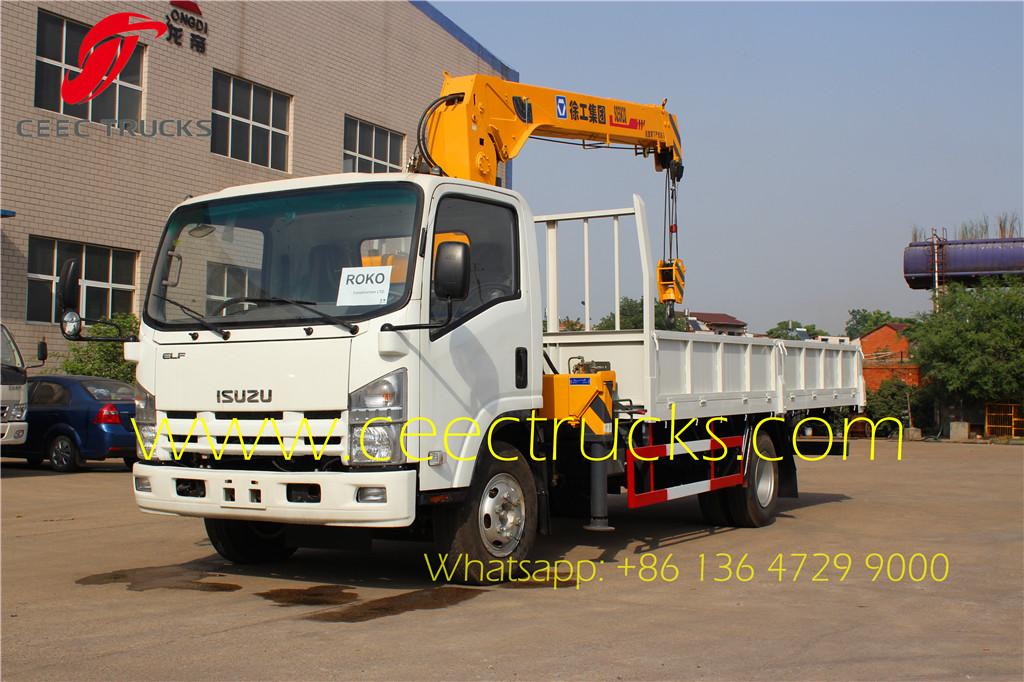

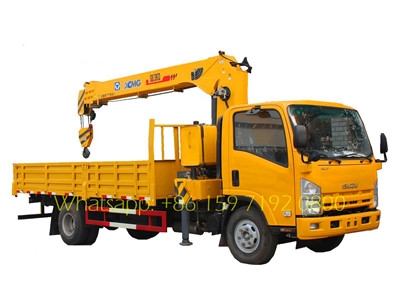

ISUZU 6.3 T truck mounted crane

ISUZU 6300kg truck mounted crane usually used for heavy goods lifting and transportation. Our 2016 newly produced ISUZU 6 wheelers mounted crane cargo truck, ISUZU 10 wheeler boom crane mounted truck and Beiben 12 wheeler heavy duty truck cranes, all widely export in Asia Myanmar, Phillippine, Laos, Cambodia, etc; and Africa countries Kenya, Ivory Coast, Tanzania, Zambia, Algeria, Cameroon, etc.

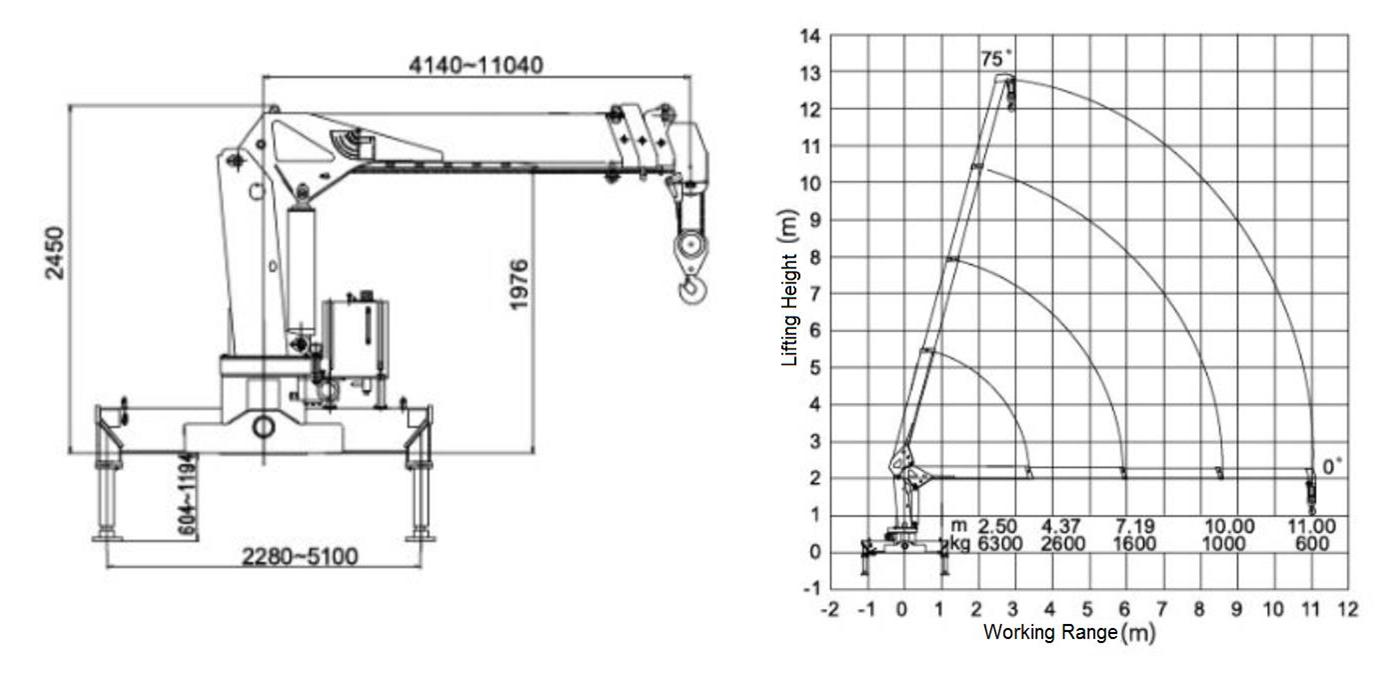

ISUZU 6.3 T truck mounted crane

Best ISUZU 6.3 T telescopic mounted truck crane advantage features:

1． CEEC TRUCKS is the manufacturer of ISUZU 6.3 ton truck mounted crane many years with good reputation. And thecrane including XCMG, UNIC, PALFINGER, SANY, etc.

2． Advanced development & analysis meansmake sure design is very reliable.

3． Higher lifting capacity with four connectedbar mechanism.

4． Flange telescopic boom coupling technology.

5． Self-design & developed slewing machinewith greater drive force can meet varied requirements of working situation.

6． The more symmetrical center design of hexagonboom make it has bigger anti-bending capacity.

7． Float three-point bridge structure design canlower the accessional stress on the chassis frame when traveling.

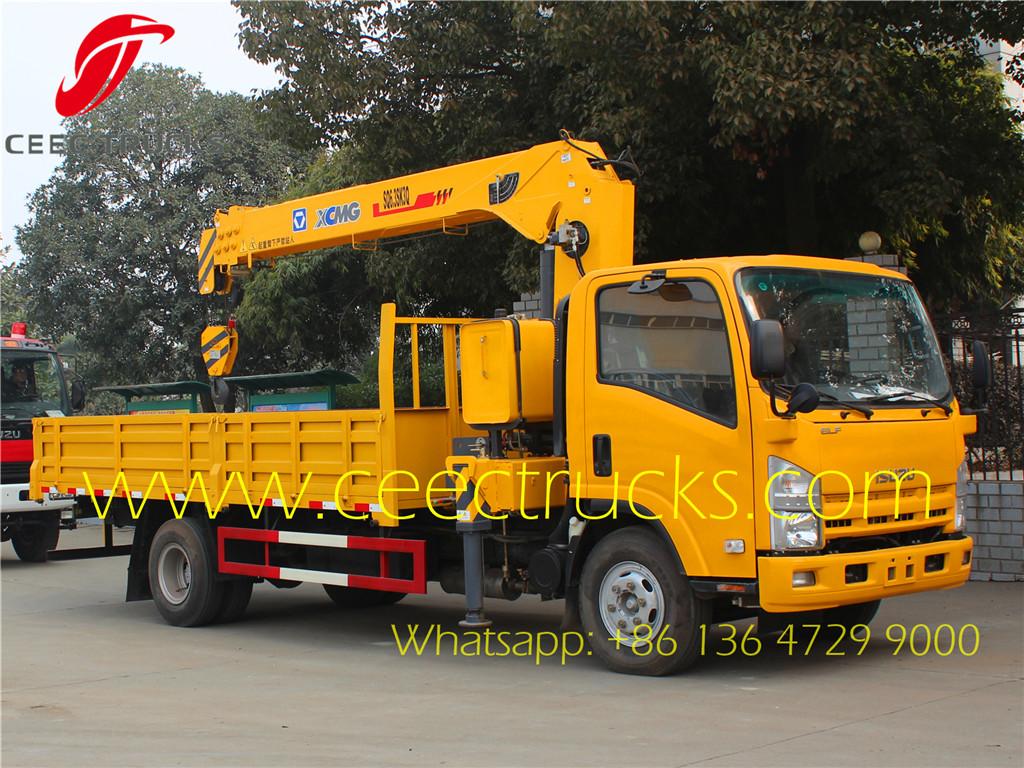

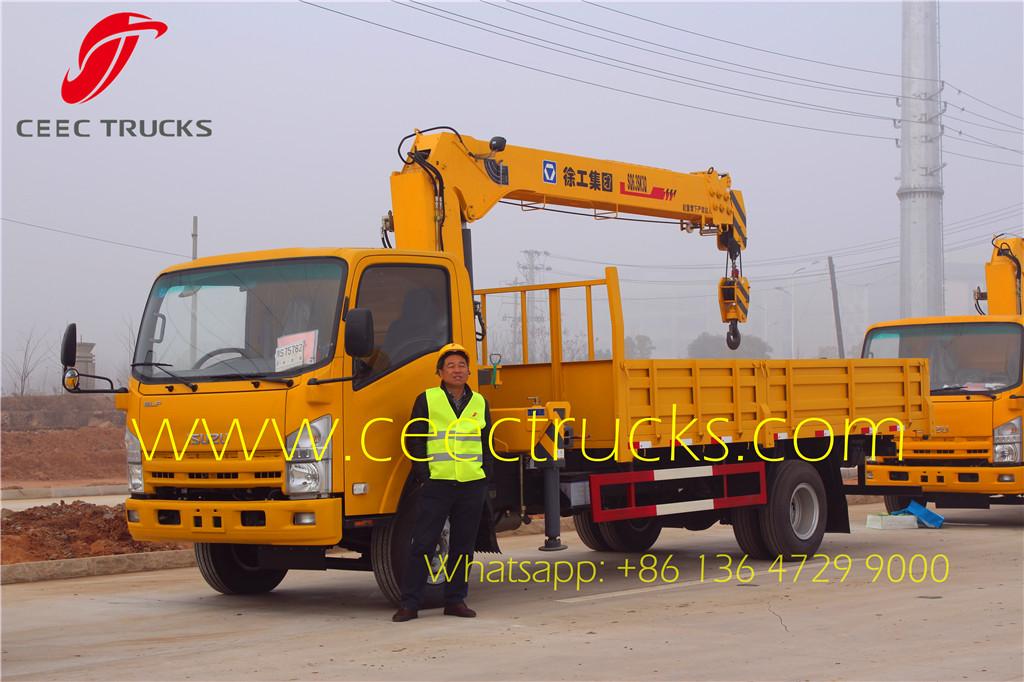

ISUZU 6.3 T truck mounted crane manufacturer supply

Similar Key Words: ISUZU 6.3 T truck mounted crane, ISUZU 6.3t mounted crane cargo truck, ISUZU 6 wheeler truck crane, best ISUZU 6300kg mounted truck crane, 6.3 T truck mounted crane for sale

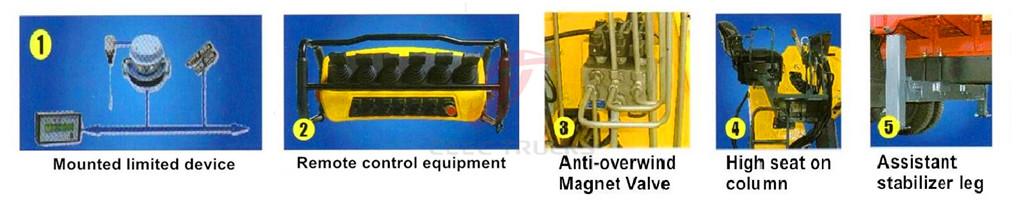

Why customer choose ceec produced truck mounted crane

ISUZU 6.3 T boom crane truck supplier
Items			Parameter
Crane Parameter	Max Lifting Capacity		6300 kg
	Max Lifting Moment		15.7 T.M
	Recommend Power		20 kw
	Max Oil Flow of Hydraulic System		40 L/min
	Max Pressure of Hydraulic System		20 Mpa
	Oil Tank Weight		90 L
	Crane Weight		2160 kg
	Installation Space		900 mm
	Rotation Angle		360° All Rotation
Tank Body	Cargo Thickness	Side	3mm
		Floor	4mm
Chassis	Recommend Chassis Brand		ISUZU
	Drive Mode		4x2
	Tire type		8.25-16 tire
	Tire No.		6+1 units
	Max speed		105 km/h
	Cab		1. Flat roof, All-steel-welded construction 2. spring suspensions with hydraulic shock absorbers 3. Air condition 4. 2 seats 1-DIN AM/FM CD/MP3 Player
Engine	Power		4HK1-TCG40 engine 190hp
	Fuel type		diesel
	Emission Standard		Euro 3 & Euro 4
Gearbox	Control type		Manual
	Gear		MLD 6-shift manual gearbox

ISUZU 6.3 T truck mounted crane manufacturer supply

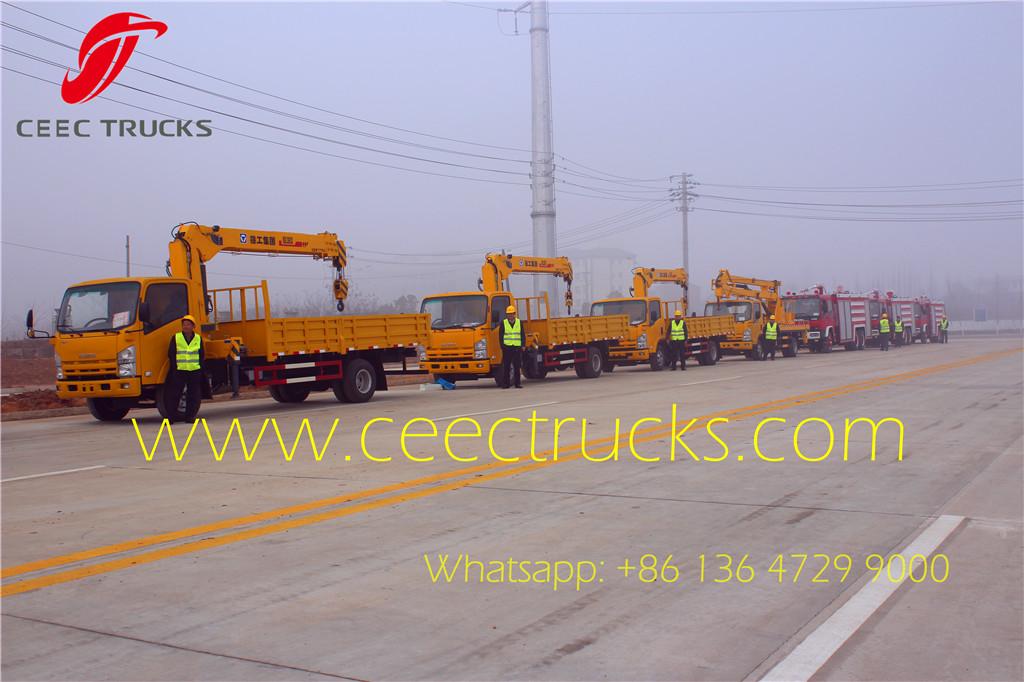

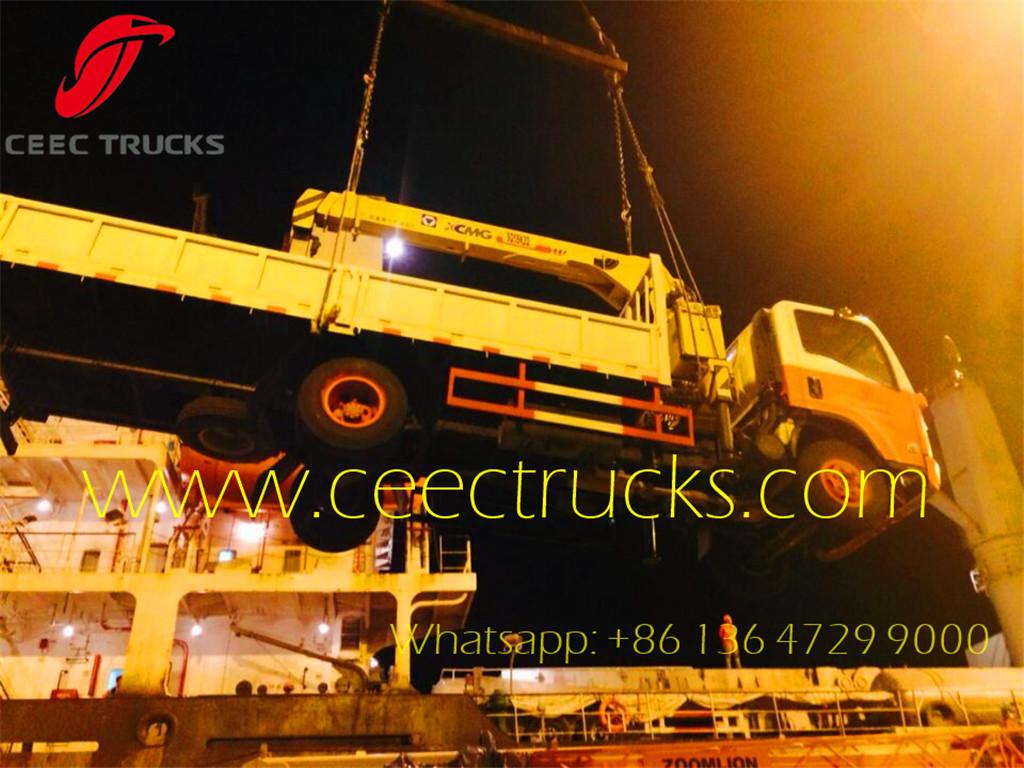

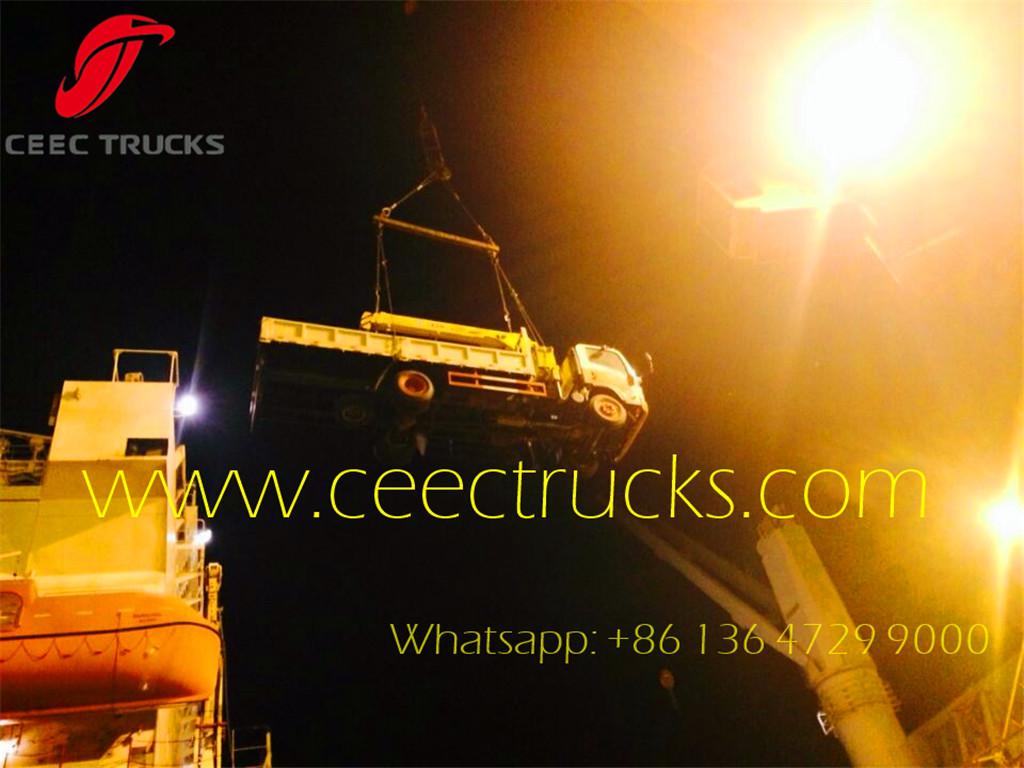

Previous exort Dubai isuzu trucks sucessful case:

4 units ISUZU 6.3 T truck mounted crane: 4HK1-TCG40 enngine 190HP, MLD 6-shift manual gearbox, XCMG 6.3 T telescopic truck crane.

1 unit ISUZU 18m Aerial Work Platform truck: 4HK1-TCG40 enngine 190HP, MLD 6-shift manual gearbox, 18 m aerial platform.

3 units ISUZU 8CBM Fire fighting truck: 6HK1-TCSG40 enngine 280HP, FAST 9-shift manual gearbox, Stainless steel tanker material.

ISUZU 6.3 T truck mounted crane manufacturer supply

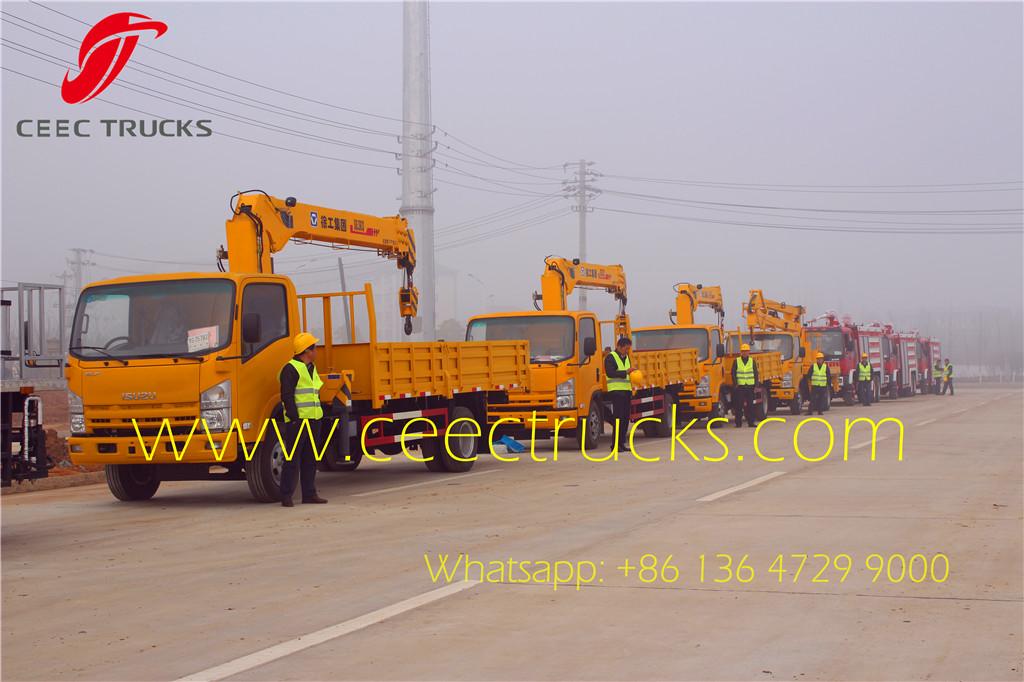

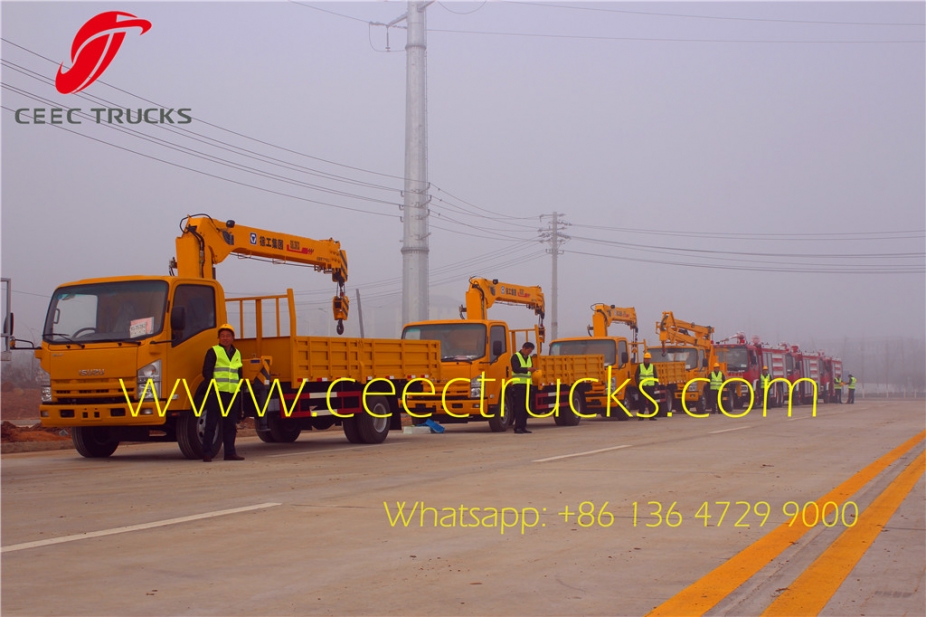

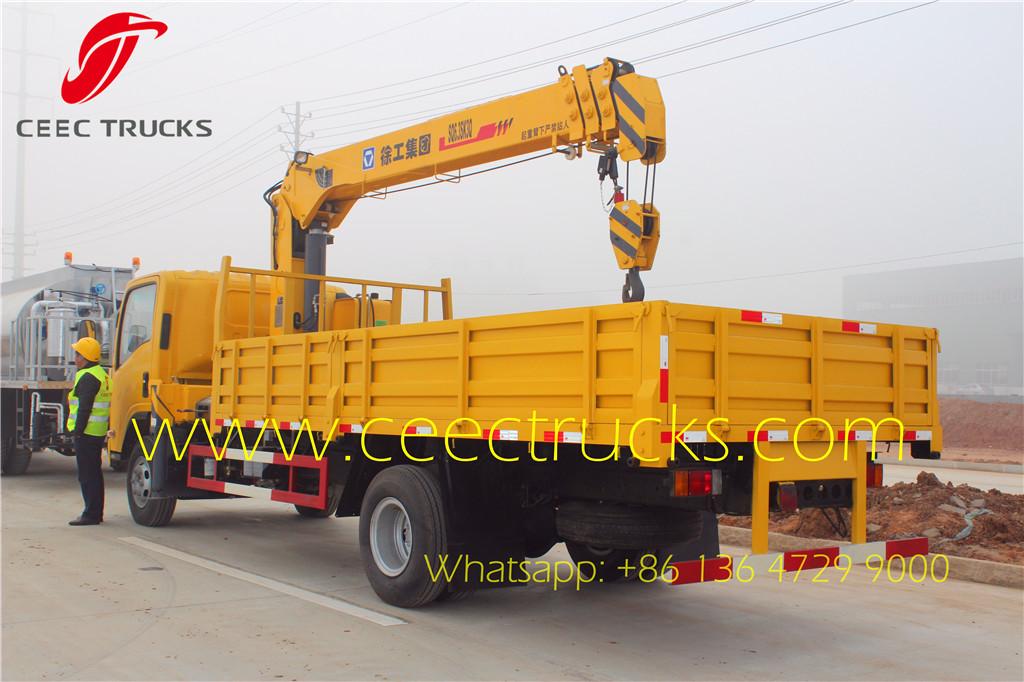

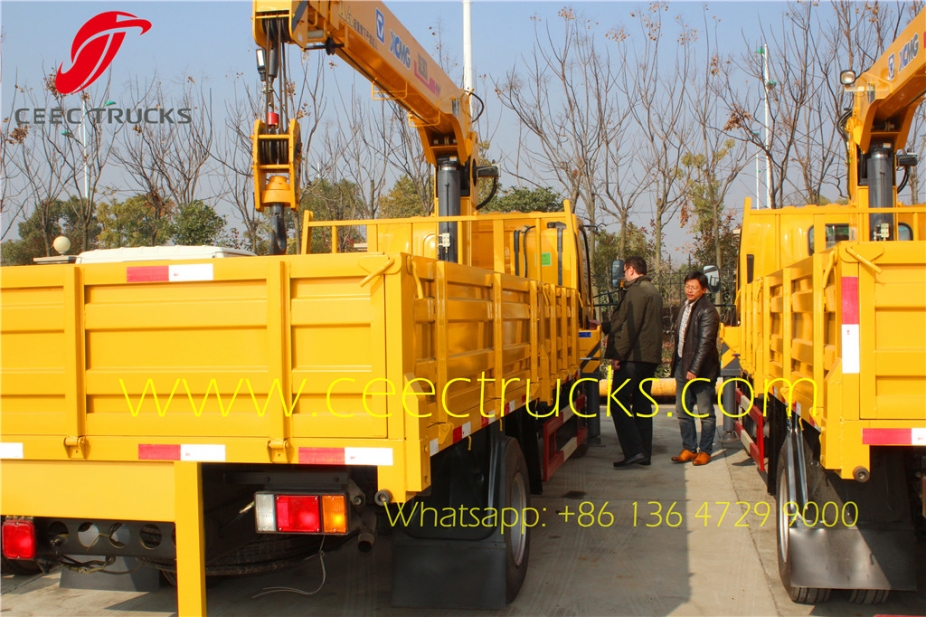

ISUZU 6.3 T Truck Mounted Crane SQ6.3SK2Q / SQ6.3SK3Q under production:

ISUZU 6.3 T truck mounted crane 3 units ISUZU 8CBM Fire fighting truck

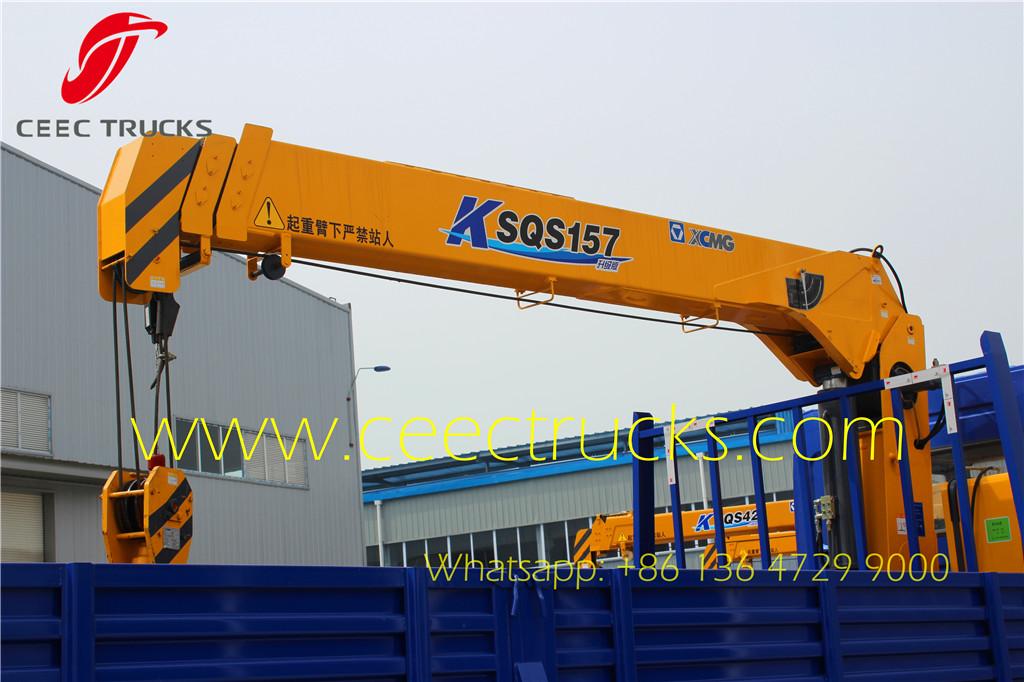

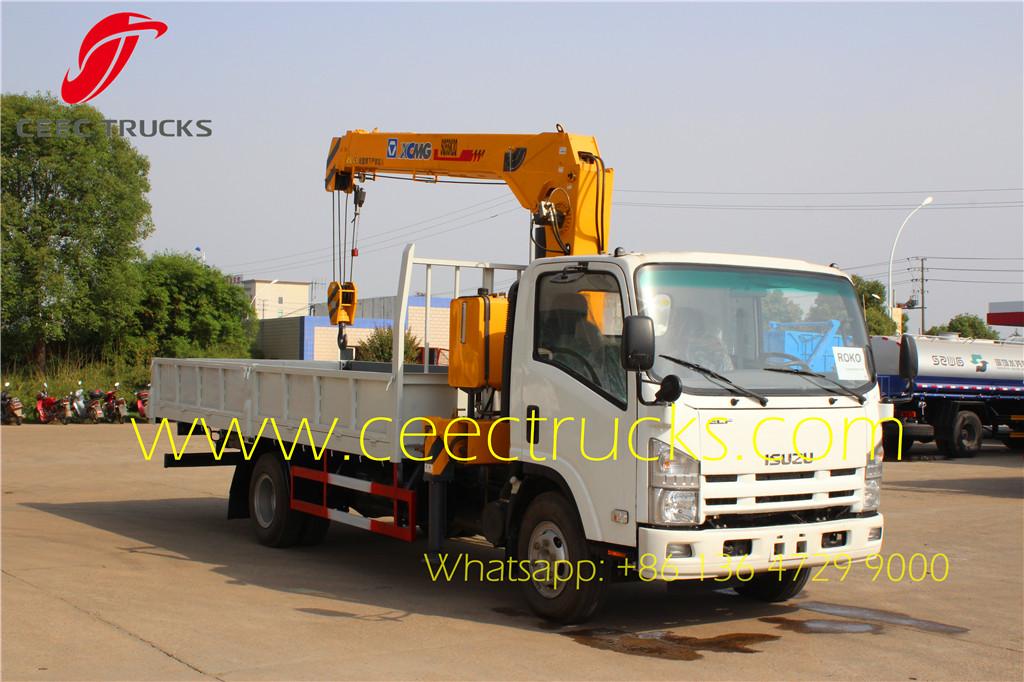

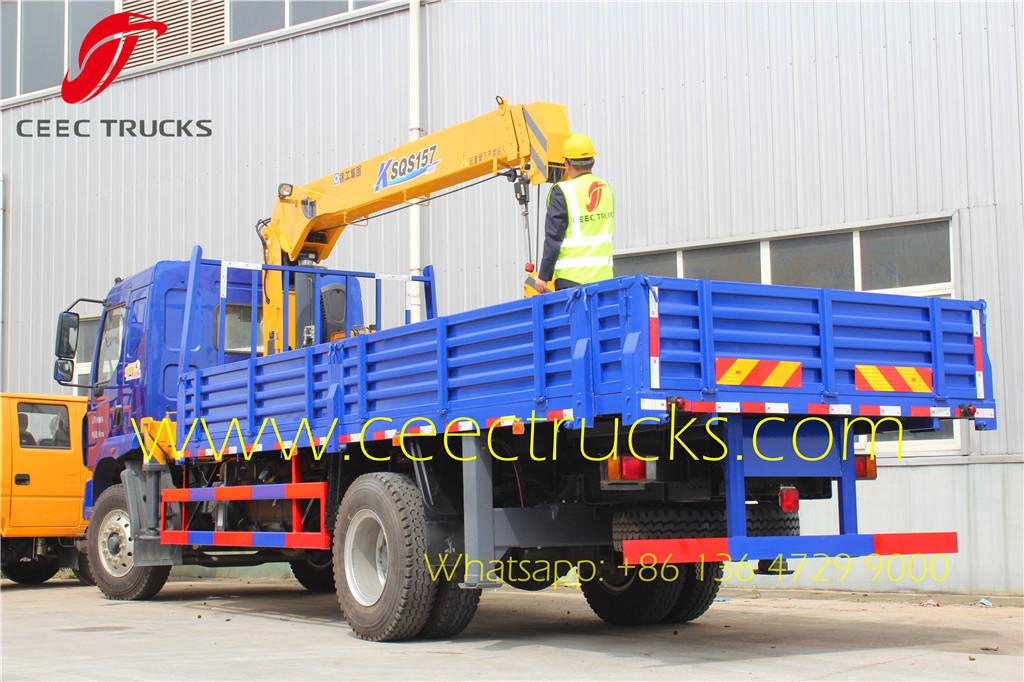

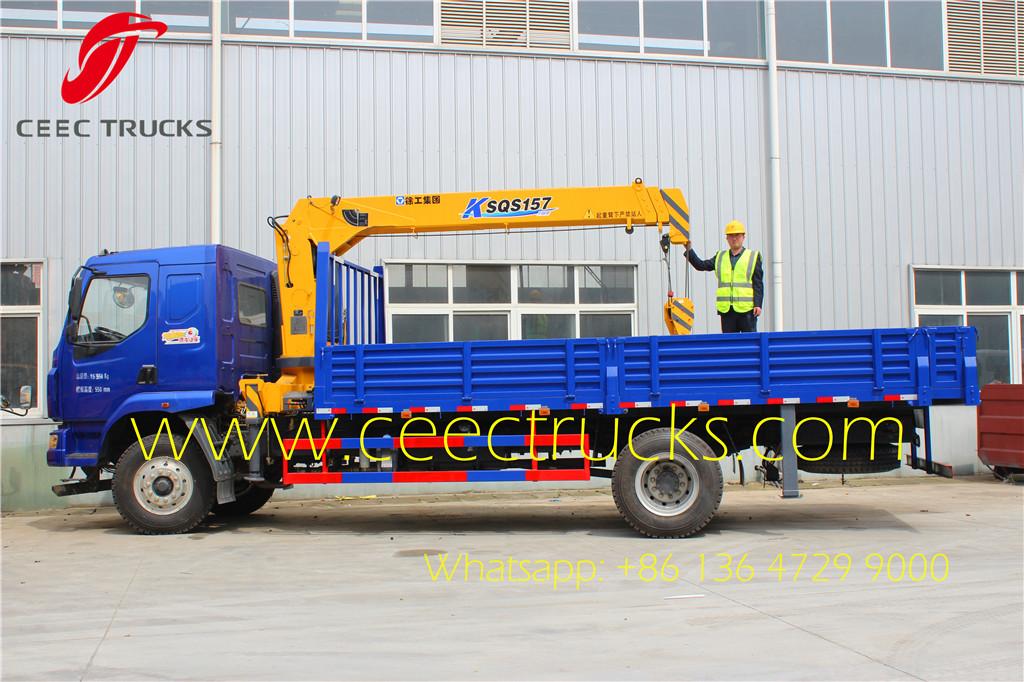

2016 new model ISUZU 6.3 T Boom crane cargo truck SQS157 XCMG truck mounted crane:

ISUZU 6.3 T Truck Mounted Crane

CEEC Recommend environmental protection truck series

ISUZU diesel tank truck	Beiben fuel tanker truck	ISUZU garbage compactor	Dongfeng 20 CBM refuse compactor

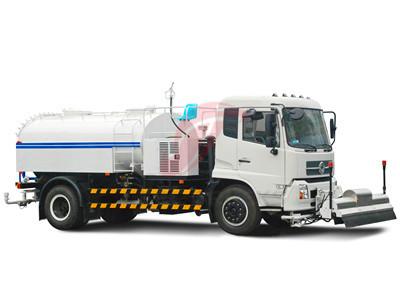

ISUZU 4 CBM road sweeper	ISUZU 8 CBM sweeper truck	ISUZU truck mounted crane	High pressure jetting truck

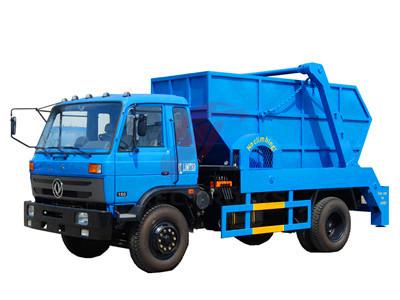

Dongfeng vacuum suction truck	Beiben Cesspit Emptier	Dongfeng skip loader truck	Beiben swing arm truck

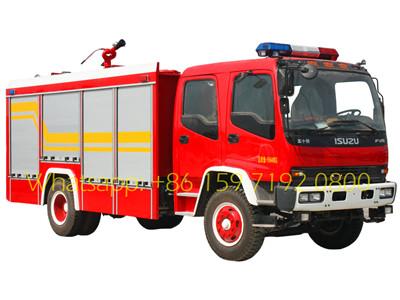

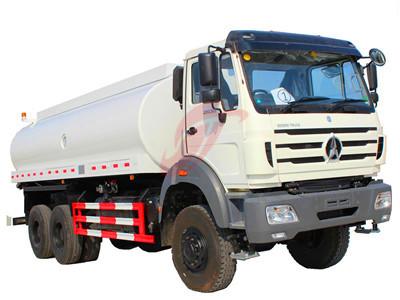

Beiben 20 CBM water truck	Dongfeng 20 CBM water tanker	Beiben Roll on Roll off Truck	ISUZU fire fighting truck
