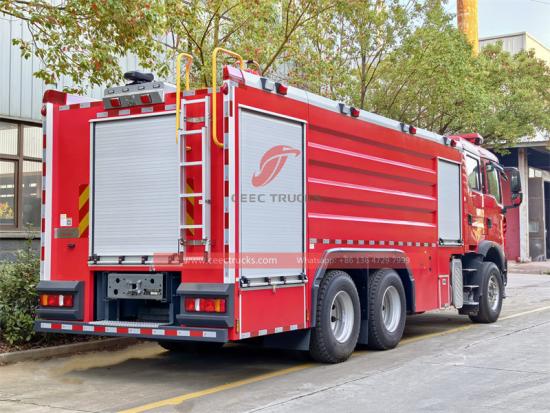

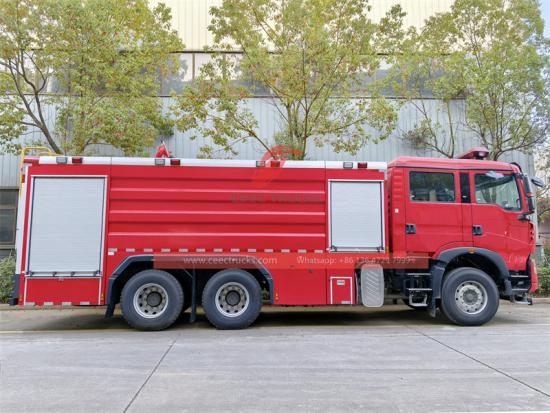

Howo TX ağır hizmet tipi 6000L köpük itfaiye aracı

O 6CBM fire water truck is built on the sturdy Howo TX double cabin chassis. It combines excellent power and environmentally friendly emissions. High engine power WP.10.340E32, it can challenge all kinds of difficult roads. It’ s equipped with a 4 000 L large capacity water tank and a professional fire pump. It has a long spray distance and a control panel language that can be selected.

Çalışma kapasitesi:
6 CBM
Boyut (mm):
9800×2550×3600mm
Dingil mesafesi (mm):
4600+1370 mm
Motor gücü:
340HP
Motor tipi:
WP.10.340E32
Aks tahriki:
6x4
Vites kutusu:
HW, manual, 10 F & 2 R
Notlar:
Tank capacity can be customized

Şimdi soruşturma

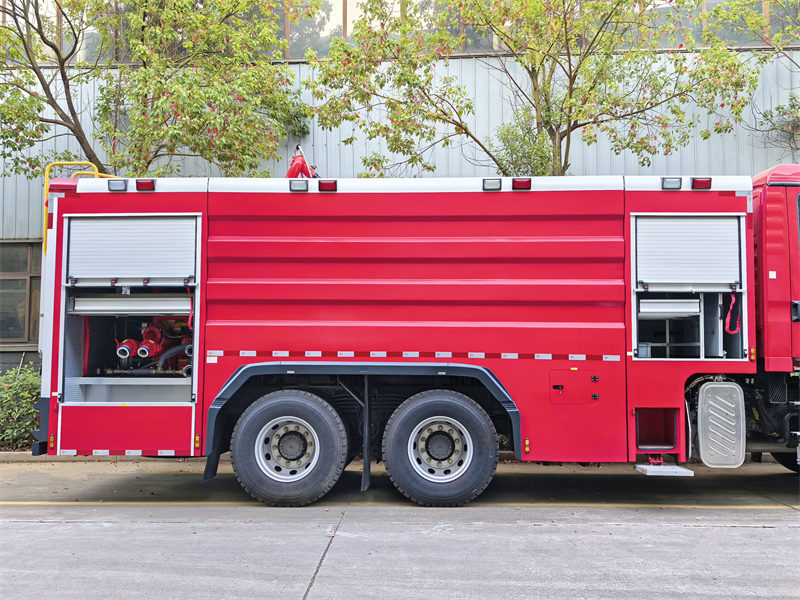

The Howo fire fighting truck with independent cabin provides enough space and quality to load firefighting equipment. The independent cabin can accommodate 5 firefighters and is equipped with heating and cooling air conditioning to ensure that the driver can stay comfortable in any weather conditions.

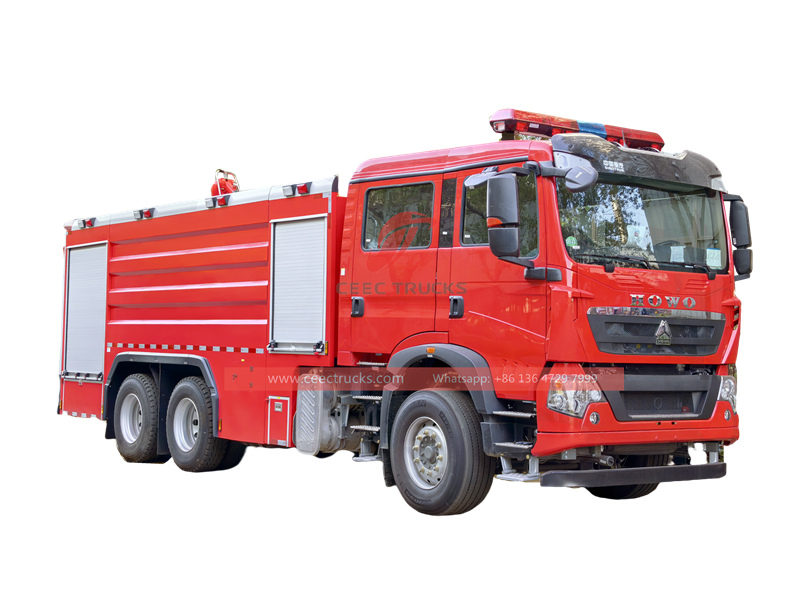

Howo TX cabin foam fire fighting vehicle

✦ Product Introduction of Howo Fire Foam Truck « « «

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: Sinotruk Howo truck chassis, 6X4,6x6 model

WP model with 340HP and Euro 2,3

2. Tank material: 4-6mm thick stainless steel for prolonged service lier
carbon steel, aluminum alloy or PP material can be choose

3. Tanker body: Customized for Water + Foam + Dry Powder fire agent

4. Fire Pump: CB10/40 centrifugal fire pump, flow rate 40L/s, working distance over 55m
Optional CB10/40, CB10/60 also available Darley fire pump

5. Special design: Super designed working temperature -41℃ to +48 ℃ day and night, with efficiently working height over 5000m

Optional equipped CAFS foam system and Dry Powder system

Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue

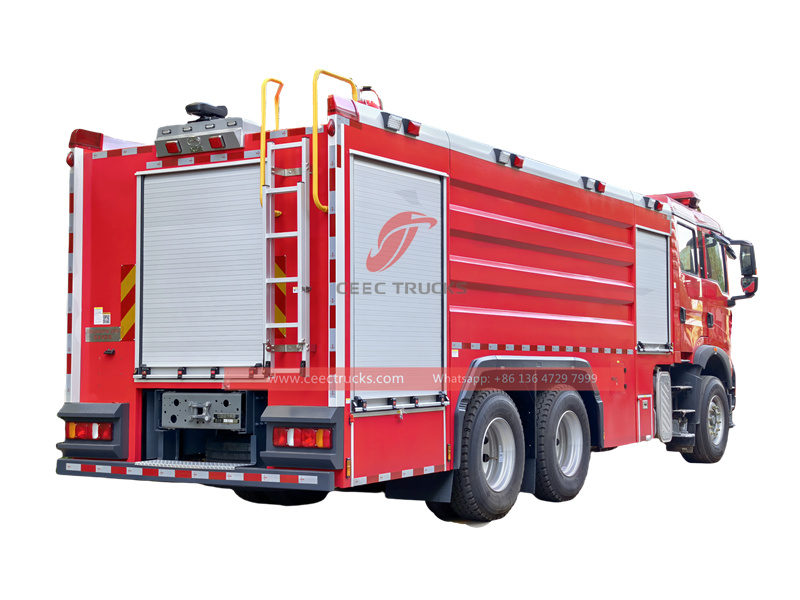

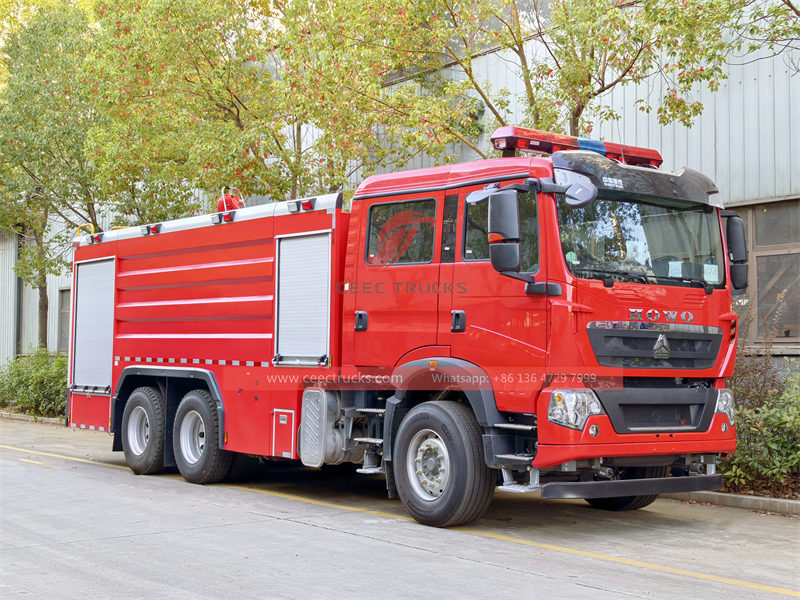

Howo fire trucks

✦ Product Parameter of Howo Fire Fighting Truck « « «

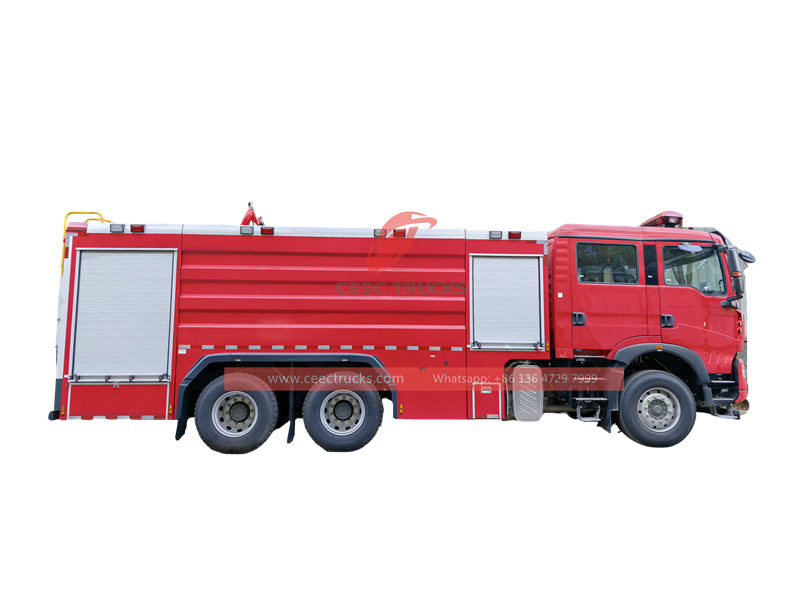

Howo TX fire foam truck

Howo fire water truck
Chassis Series	Howo TX Series
Vehicle Model	CSC 5 18 03MXF
Main specifications	Manufactory	CS Trucks Group
	Overall dimension(LWH)	86 00×2 48 0× 33 60mm
	GVW	250 00Kg
	Curb weight	125 00Kg
	Water tank volume	4 ,000 liters
	Cabin	Single cabin, 2seats,with Air conditioner, electronic windows, USB
	Independent cabin	5 firefighter
	Wheel base	4600+1370mm
	Driving type	6*4
	Chiassis model	Howo
	Transmission	Fast 8 -speed forward, 2 reverse
	Number of axles	2
	Tire specification	12.00 R 20 18PR
	Number of Tires	10 pcs with 1 spare tire
Engine	Engine model	WP.10.340E32
	Type of fuel	Diesel
	Displacement/power	9.839L / 340 Ps
	Maximum torque	1 6 00N·m
	Max speed	95 Km/h
	Emission standard(TAS)	EURO 3
Fire performance	Water t ank capacity	4 000 L
	Fire pump	China Top brand
		Model: CB10/ 4 0
		Low-pressure: 4 0L/S
		Medium-pressure: 4 0L/S
	Fire monitor	China t op brand
		Model:PL8/48
		Working pressure: 1.0MPa
		Flow: 40 L/S
		Water jet distance:≥ 5 5m
		Rotation angle: 360° horizontally, -45° to 70° in pitch
	Fire pump Input	1 unit, diameter: 100mm
	Fire pump Outlet	2 units, diameter: 65mm 2 units,diameter: 85mm
	Standard configurations	Water pump operation panel in English, fender should be black, with alarm light, detachable ladder, body rear equipment box under the direction of the upward tilt of about 45 degrees, all interfaces of the vehicle and accessories are British, with a 30m roll of black high-pressure hose

HOWO TX 6x4 foam water fire truck

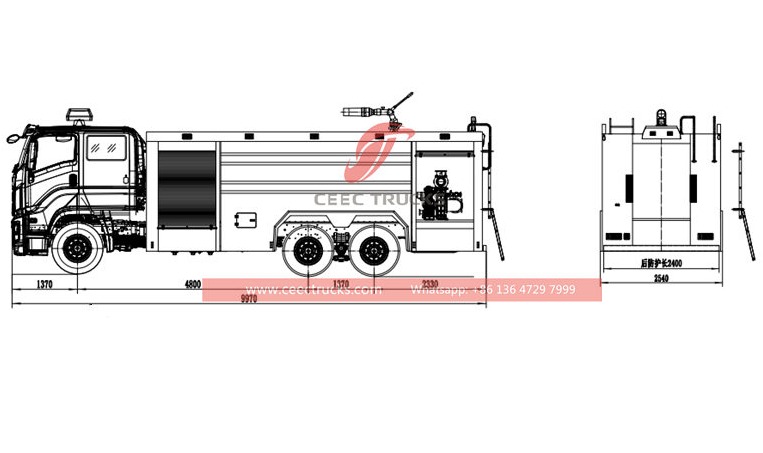

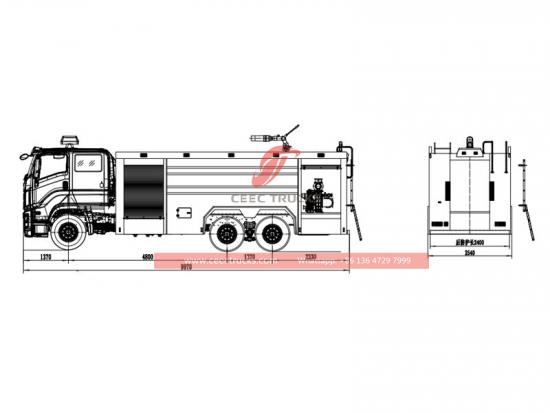

✦ Technical Design Of Howo 6x4 Fire Truck « « «

CEEC Group R & D Department for design:

100% customized appearance, design the water + foam tank capacity, fire fighting tools storage box, also the whole truck size can be customized.

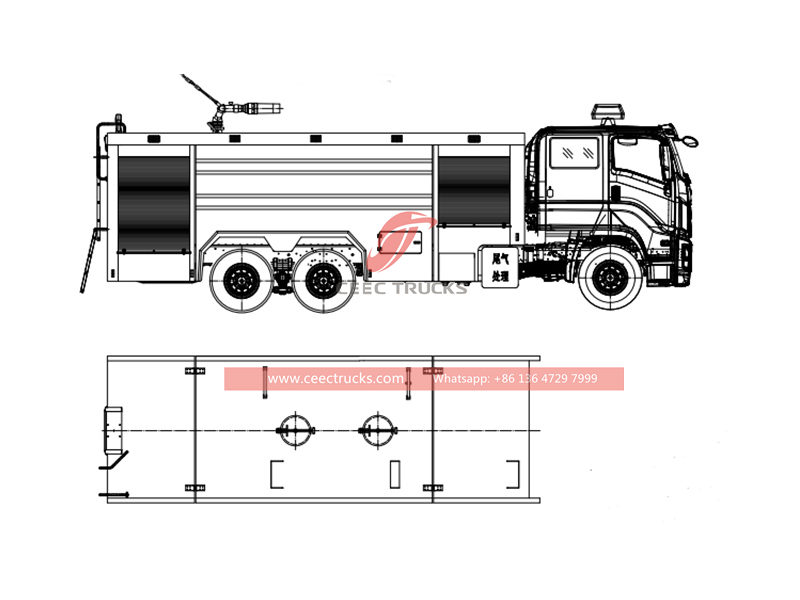

Howo 6x4 fire truck

----- Tanker Material : Carbon steel, stainless steel, aluminum alloy, PP material

----- Fire Pump : Based on tanker body and jetting distance, optional American Darley brand

----- Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)

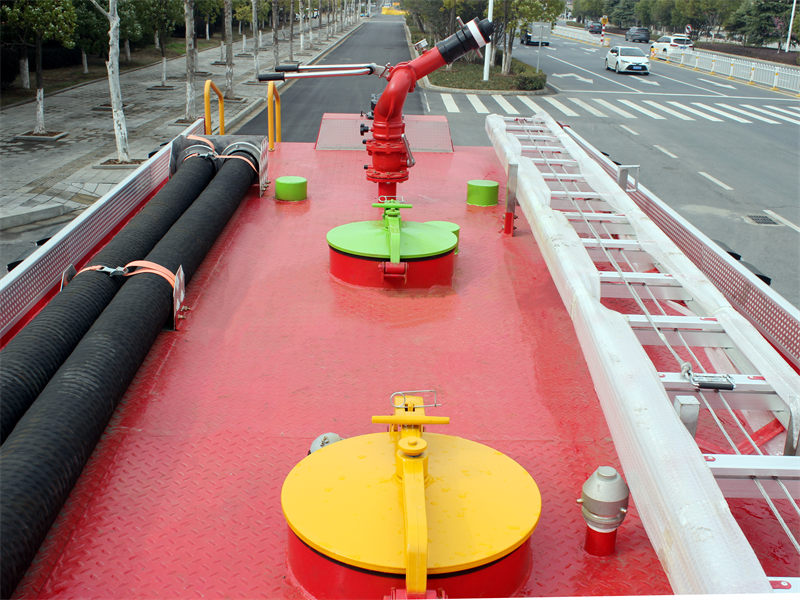

Tank System: The front part is the equipment room, where various firefighting equipment (such as fire hoses, fire extinguishers, fire axes, wrenches, hammers, picks, etc.) are stored for easy access. In the middle, there is a 9-cubic-meter carbon steel water tank and a 3-cubic-meter foam tank, both equipped with manholes on top.

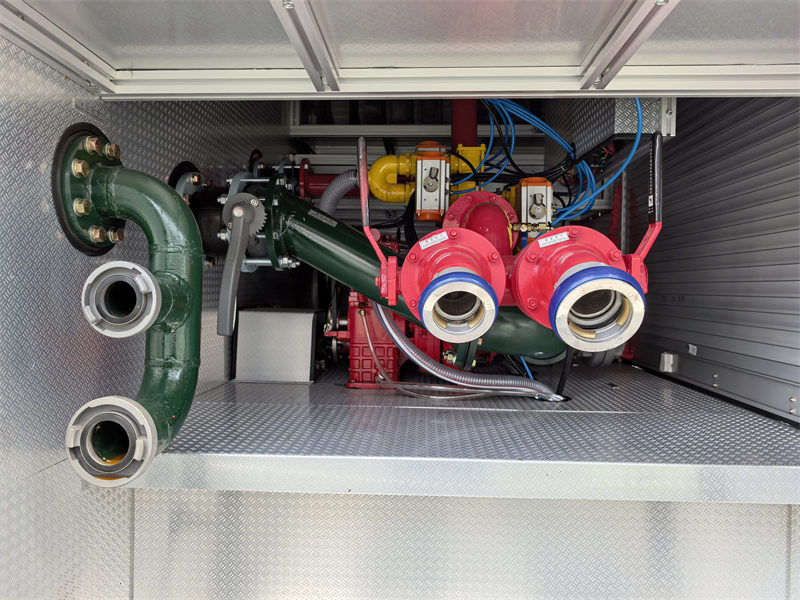

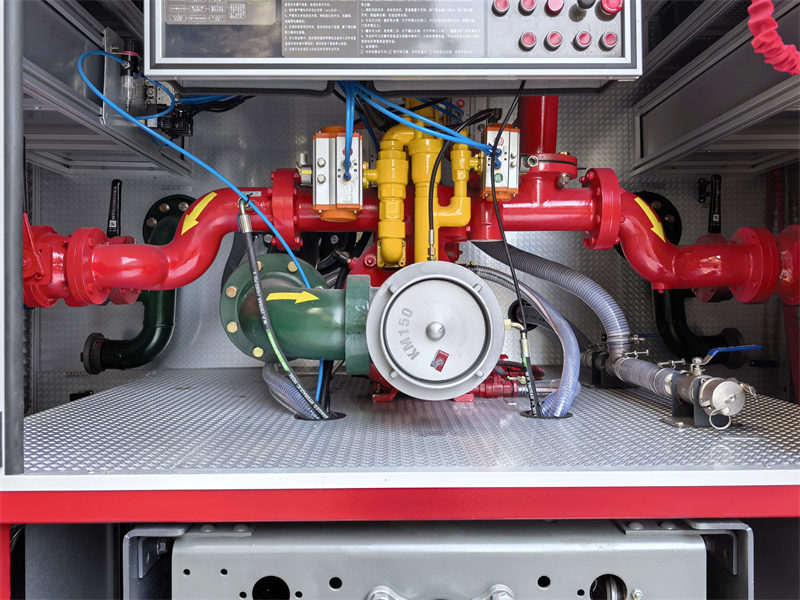

✦ Fire Pump System Of Howo 6x4 Fire Truck « « «

♦ With the self-circulating antifreeze system (-30℃ working condition), it can support continuous spraying time of up to 3 00 seconds (single water source mode).

♦ Standard CB10/ 4 0 mid-mounted centrifugal pump ( 4 0L/s@1.0MPa), optional Hale HPX or Rosenbauer NH30 pump group (flow rate increased to 40L/s) .

♦ W ater cannon range of 5 5m (DC)/ 4 8m (spray), foam mixing ratio 3%-6% adjustable, to achieve rapid suppression of Class A/B fires.

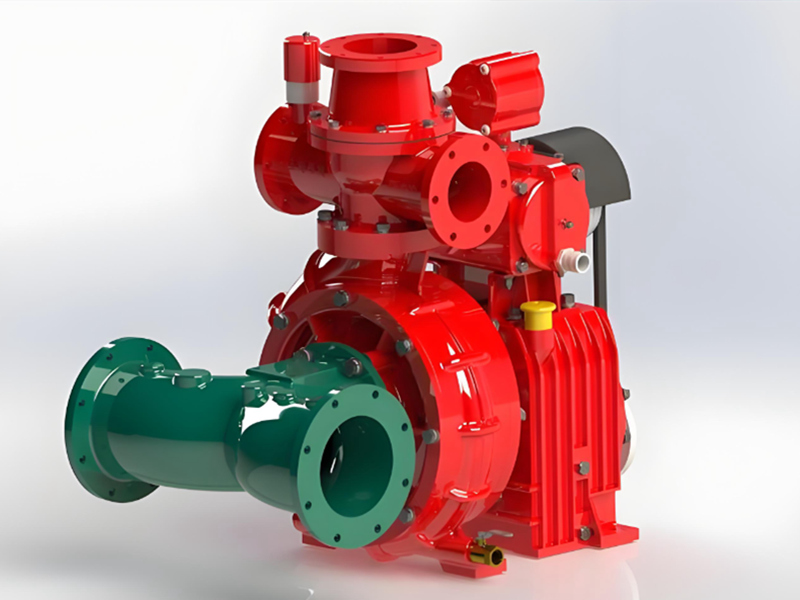

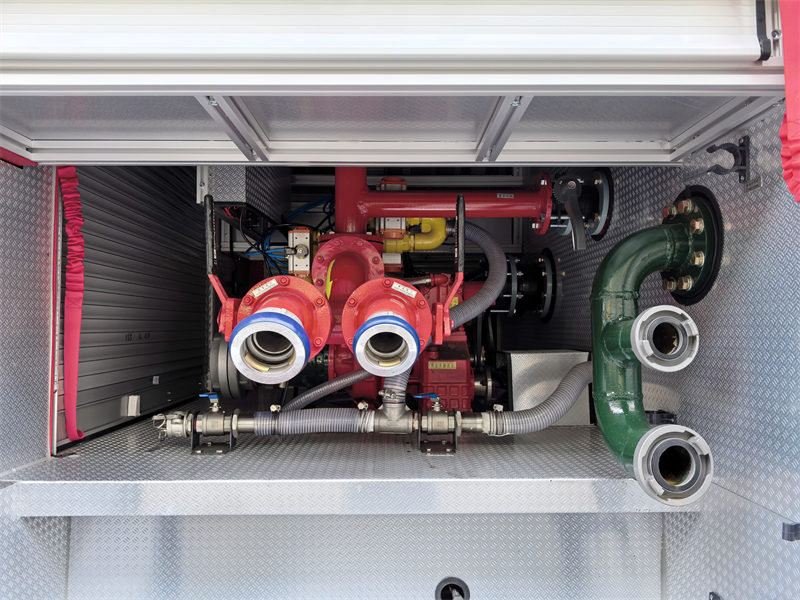

Fire pump

Fire pump Model	Pressure	Max working pressure	Flux	Rated speed	Speed Ratio	Max pressure	Priming Time	Head
CB10/ 4 0-RS	1.0MPa	1. 380 MPa	4 0L/s	3 3 00± 3435 r/min	1:1. 5 4	≥0. 40 MPa	≤10s	4 0m

✦ Fire Foam System Of Howo 6x4 Fire Truck « « «

Howo foam fire trucks, through their combined effects of physically isolating oxygen, suppressing steam, and cooling to prevent reignition, have become a "trump card" for dealing with liquid fires and industrial fires.

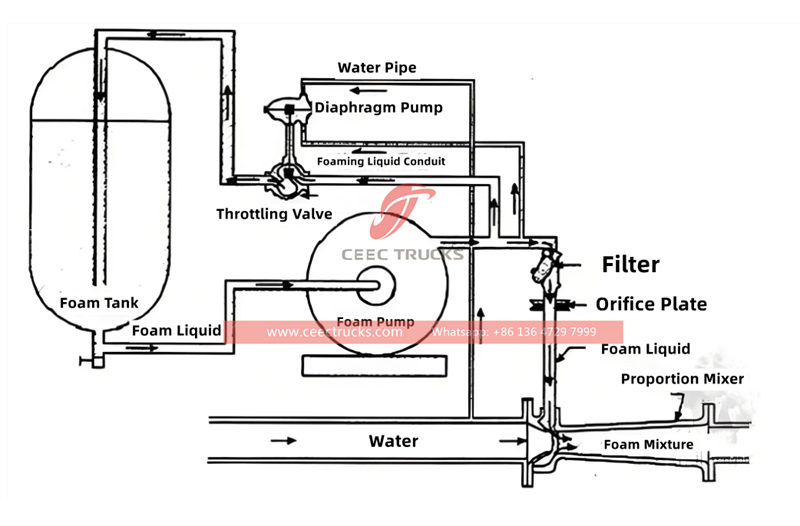

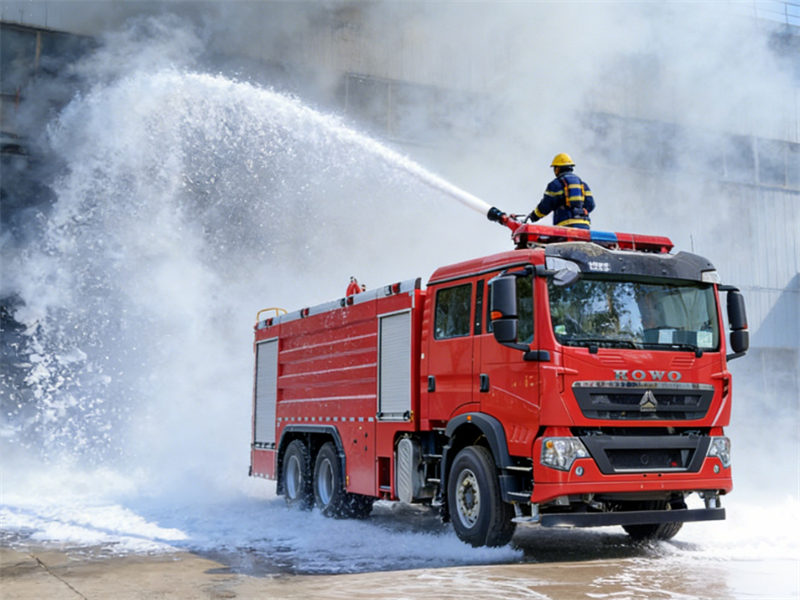

Howo fire foam tank truck

♦ Foam effectively covers liquid surfaces, forming an insulating layer that blocks oxygen supply and rapidly suppresses oils, solvents, and chemical raw materials.

♦ For fires involving polar solvents (such as alcohol and acetone), alcohol-resistant foam can be used to prevent the foam layer from being destroyed.

♦ Foam can spread over a large area, rapidly covering the ignition source, making it suitable for three-dimensional fires (such as warehouse shelves and aircraft fuselages) and flowing fires.

Howo fire foam tank truck

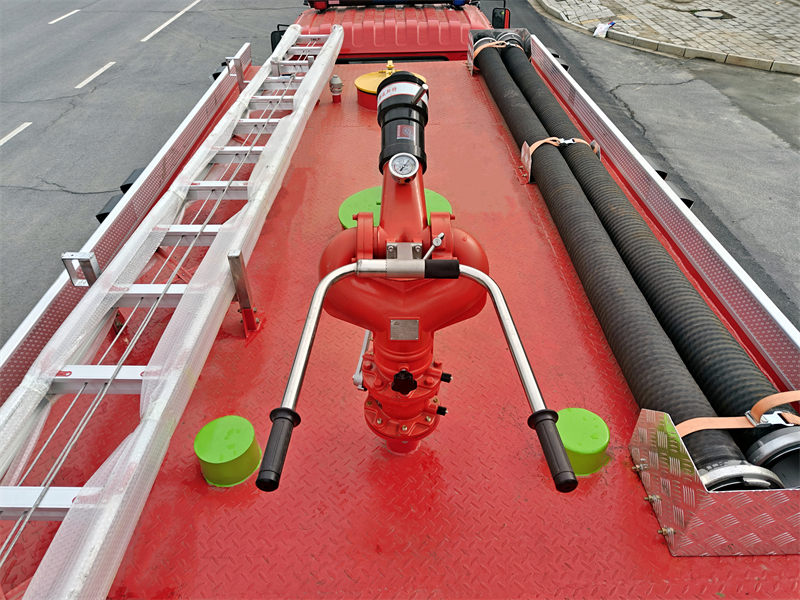

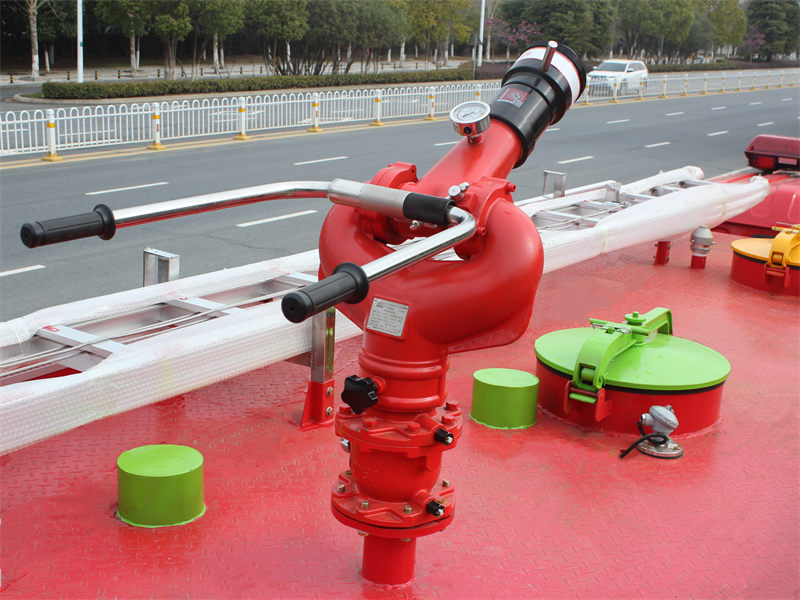

✦ Fire Moniter System Of Howo 6x4 Fire Truck « « «

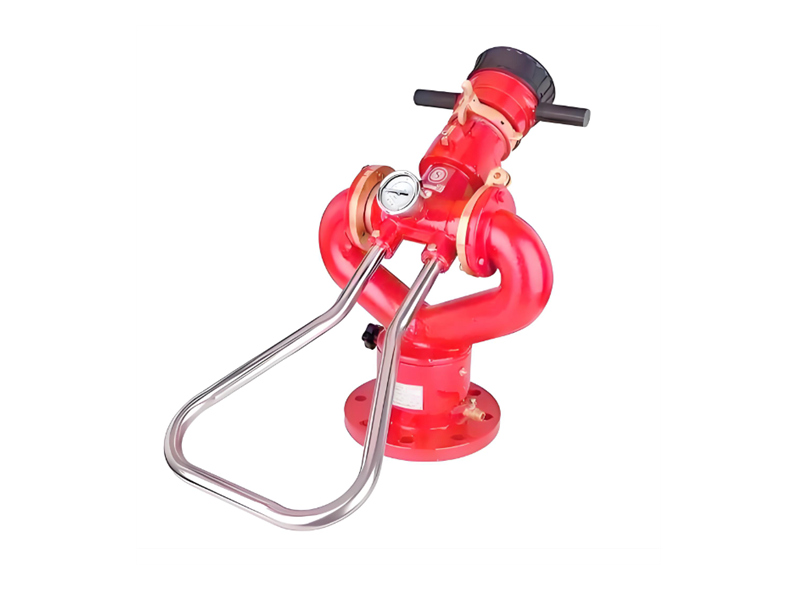

fire cannon

Fire Monitor Model

Flow

Range

Rated Pressure

Pitch Rotation

Horizontal rotation

Weight

PL8/48

48L/s

water ≥70m,

foam ≥60m

0.80MPa

-45° ～ +70°

0 ～ 360°

27kg

✦ Advantage Of Howo 6x4 Fire Foam Truck « « «

1. Chassis Performance:

Engine and Powertrain The Howo TX chassis is equipped with an WP10.340E32 diesel engine, delivering a maximum power of 340 HP and a torque of 1230 N·m.

Equipped with heavy-duty 295/80R22.5 tires, it offers a minimum turning radius of ≤12 meters and a wading depth of ≥800 mm, making it suitable for complex terrain and adverse weather conditions.

2.Structural design ：

The chassis adopts a high-strength carbon steel frame, anti-twisting box structure, and the external rolling door design facilitates quick access to rescue tools.

The interior is equipped with adjustable aluminum alloy storage racks and rotating trailers to optimize space utilization.

● China best fire fighting truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service

⇒ Products--100% Customized Level One!

⇒ Transportation--100% Safety, Convenience, Efficient!

⇒ Services--7days + 24hours Safetify Service!

»»» CEEC trucks factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

★ SINOTRUK WP 10.340E32 Euro 6 engine, super powerful

★ SINOTRUK HW Manual 10-shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized Howo 6000 liters water foam fire rescue truck

★ Training service for Howo TX 6CBM foam fire fighting truck .
