Ödeme:
T/T, West UnionFiyat:
$15,600/22,800Ürün oranı:
China CEECNakliye limanı:
Shanghai seaportKurşun zamanı:
10 DaysUN project 30T lowbed semitrailer
China CEEC TRUCKS produced 2 axle low bed semitrailer, 3 axle Lowbed trailer, 4 axle gooseneck semitrailer and other heavy duty lowbody trailer mainly service for UN project. These 20 T low bed trailers, 30 T gooseneck semitrailers and 40 T lowbed semitrailers are used for heavy machine transportation and bulk goods transportation. And mainly worked in Congo, Kenya, Nigeria, South Africa, Afganistan, Iraq, etc.

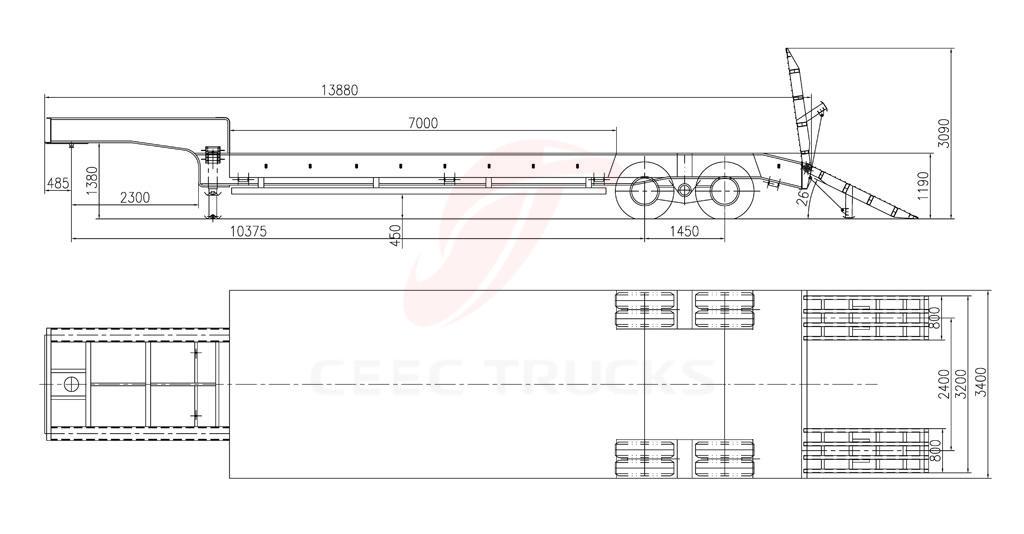

UN 30 T lowbed semitrailer technical dimension as below

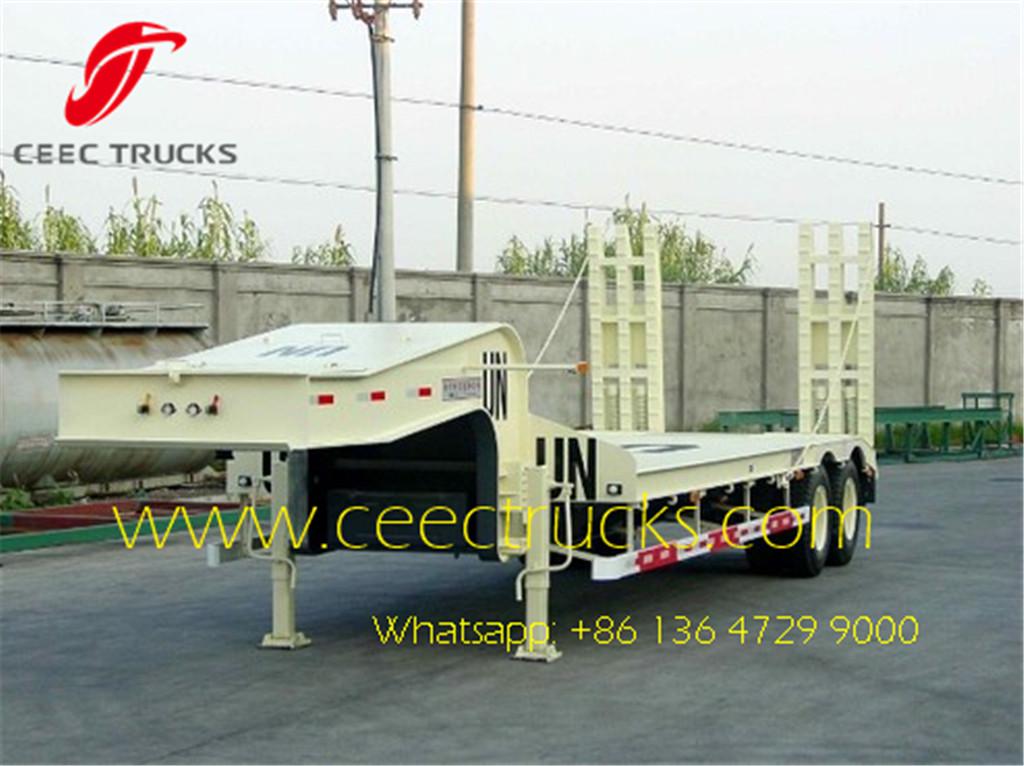

Whay choose CEEC produced 2 axle 30T Low Bed Semi Trailer?

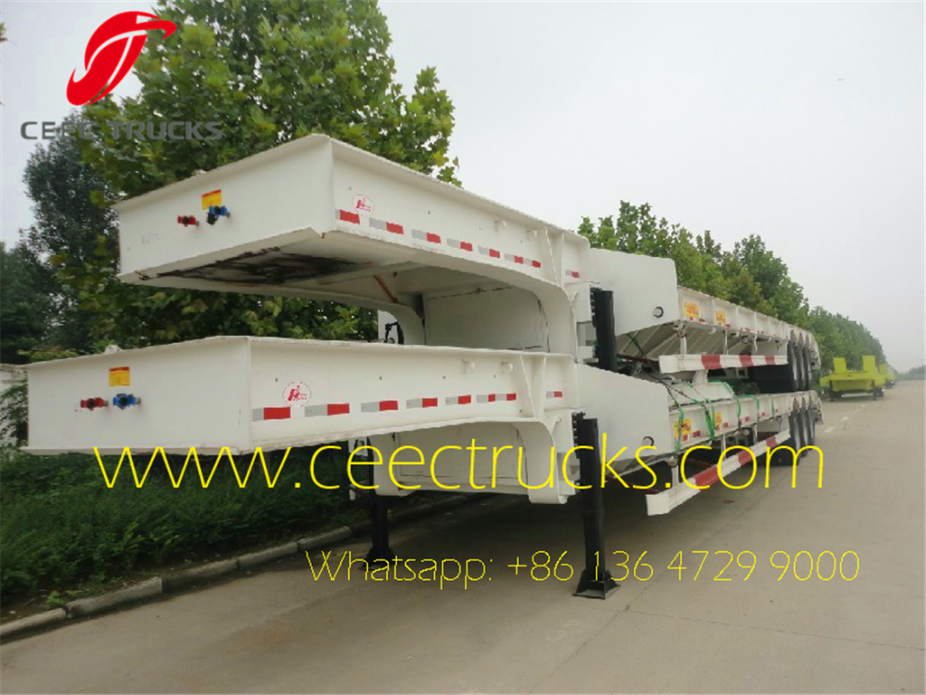

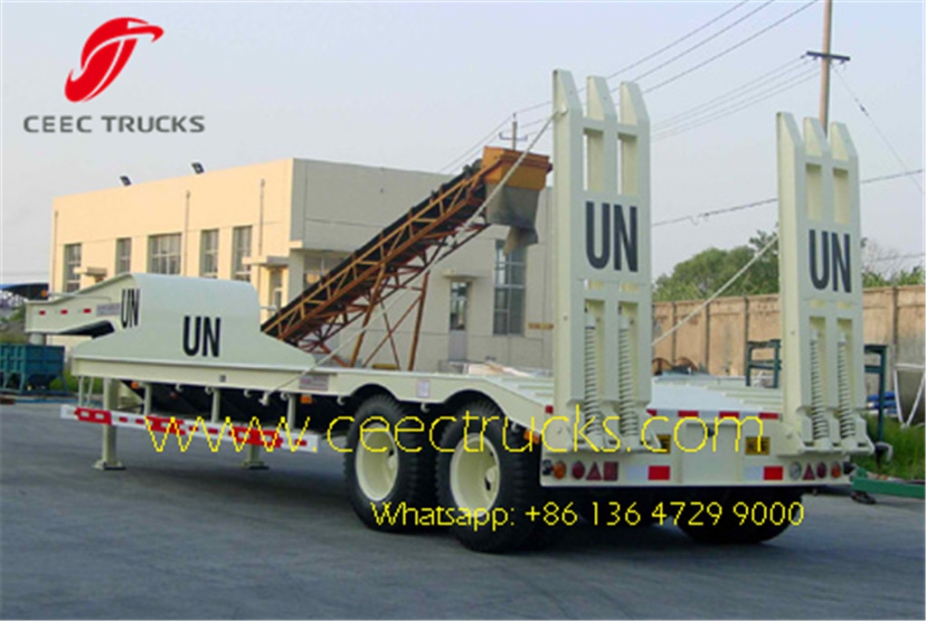

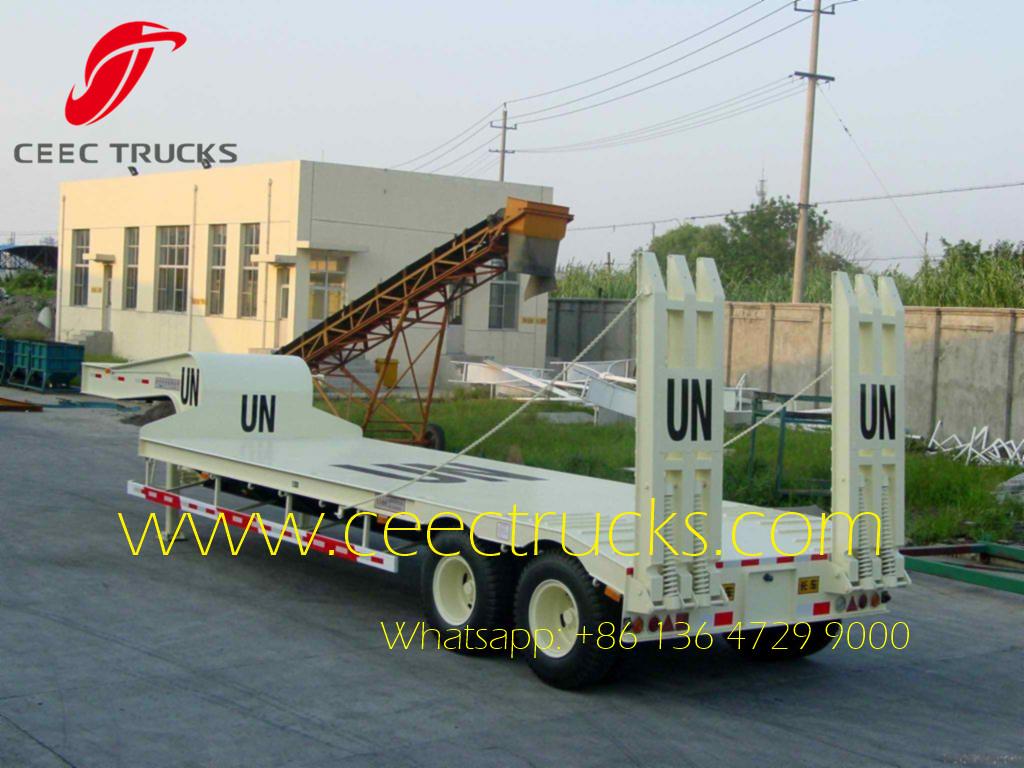

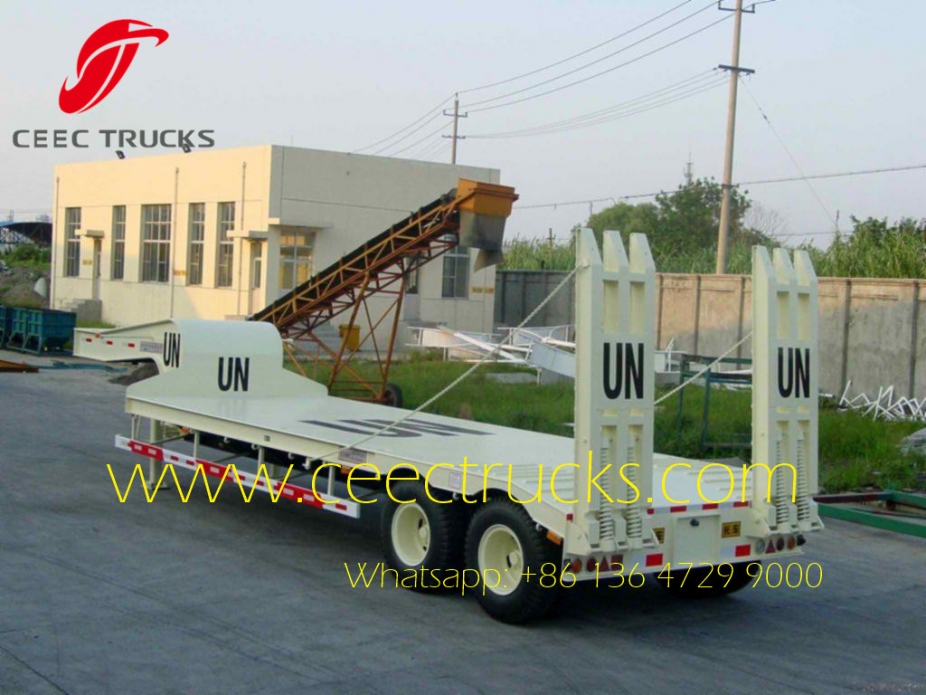

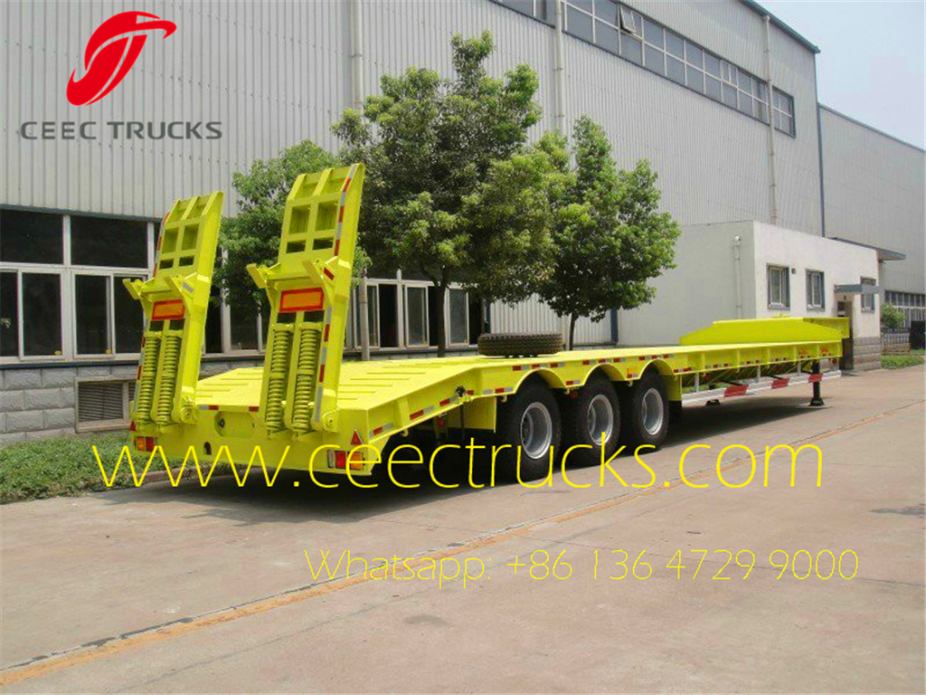

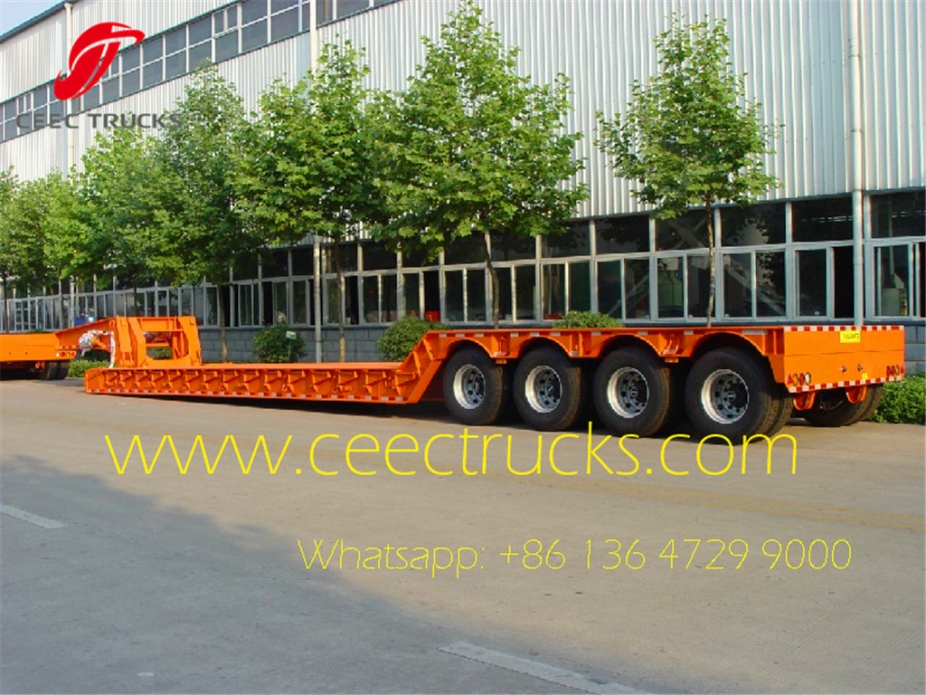

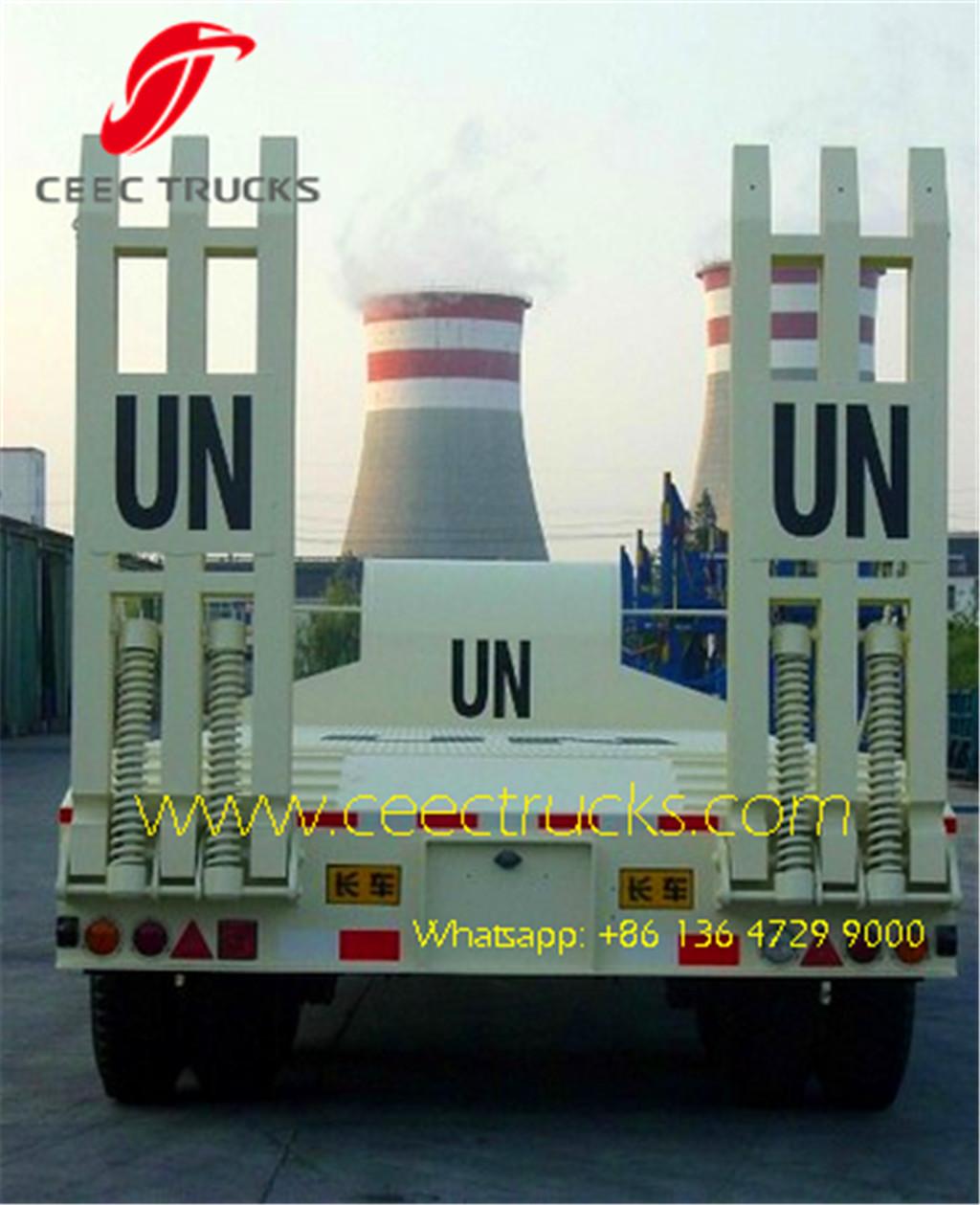

2 axle 30 T low bed semitrailer export UN:

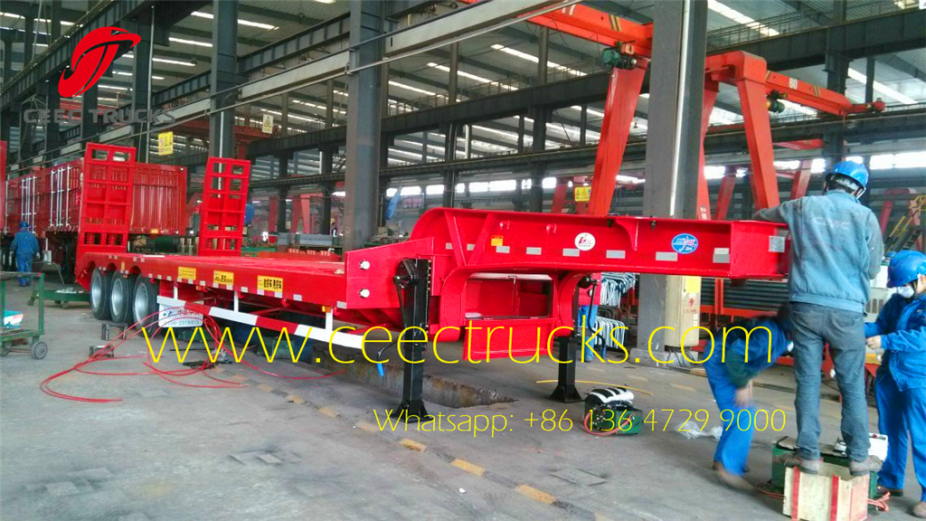

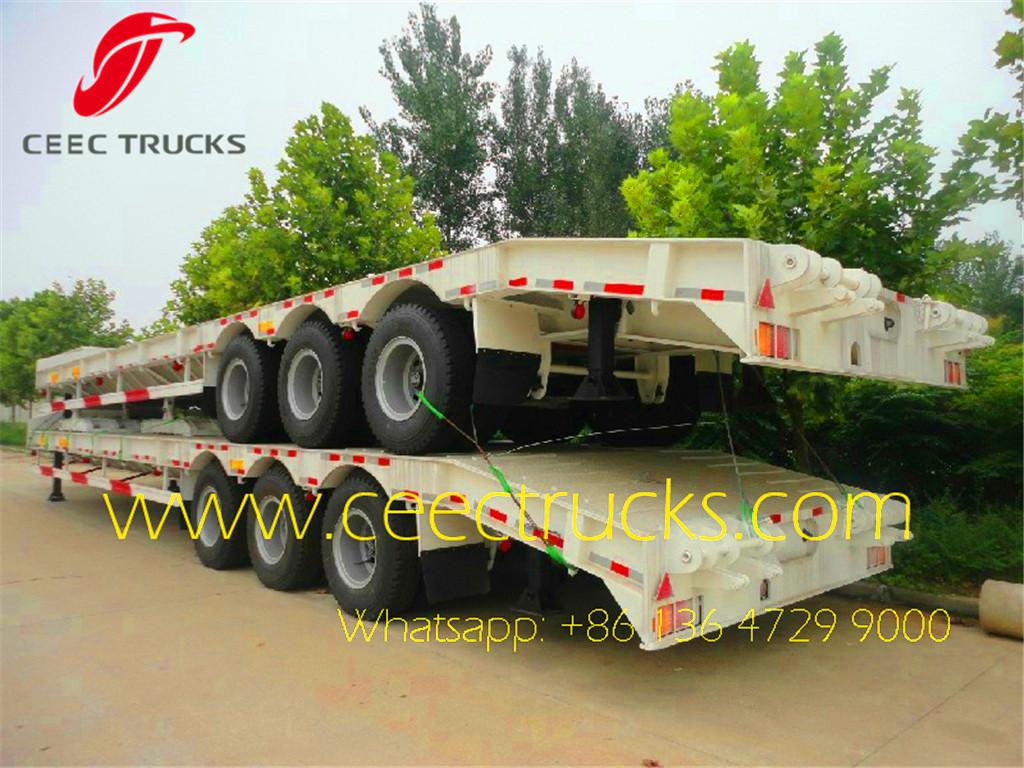

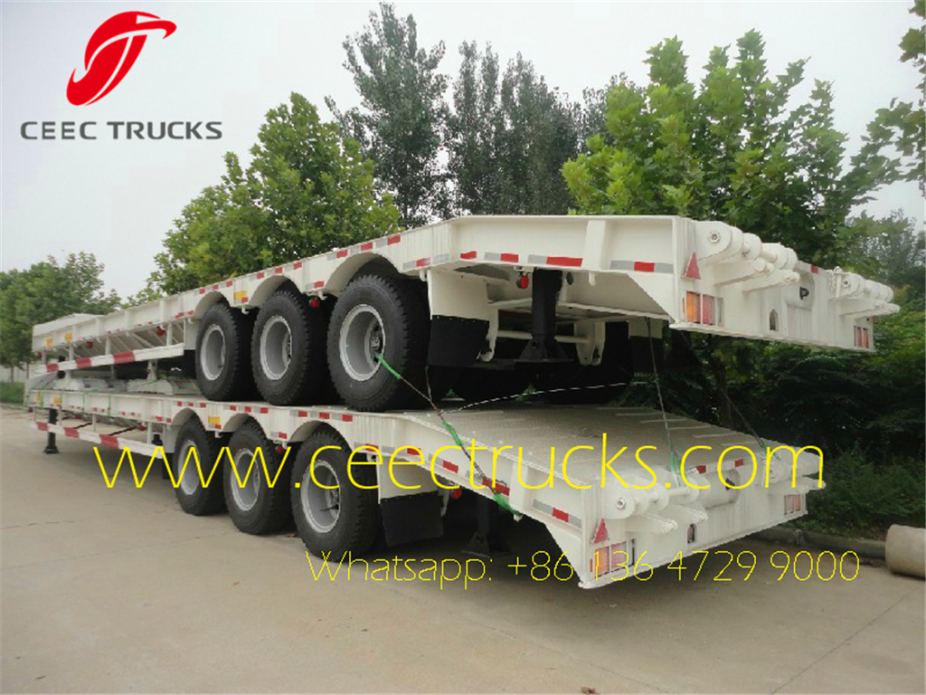

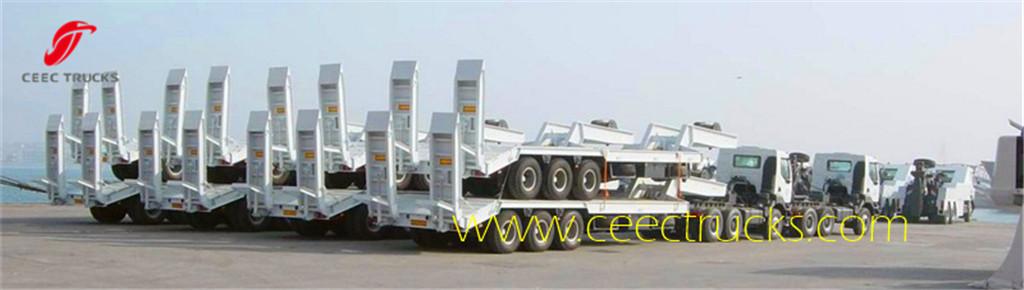

3 axle 30 T low bed semi trailer export Congo, Kenya, Ethiopia, Tanzania and South Africa:

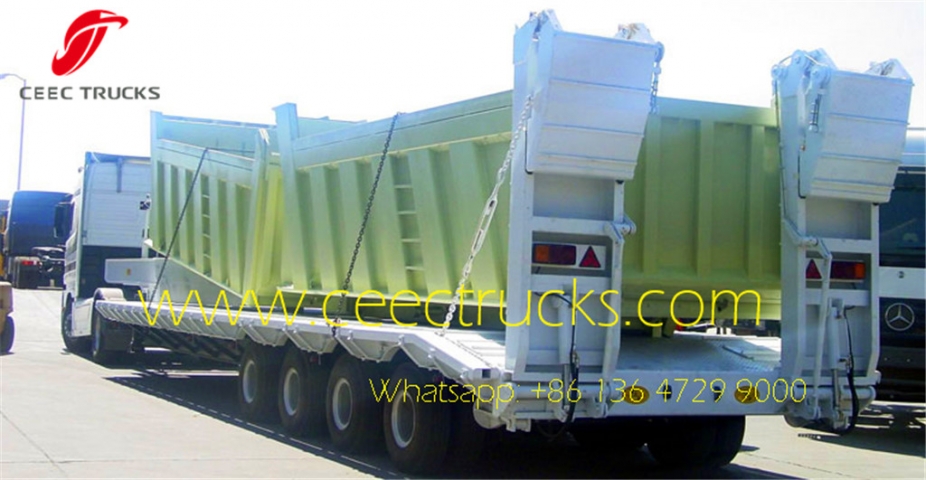

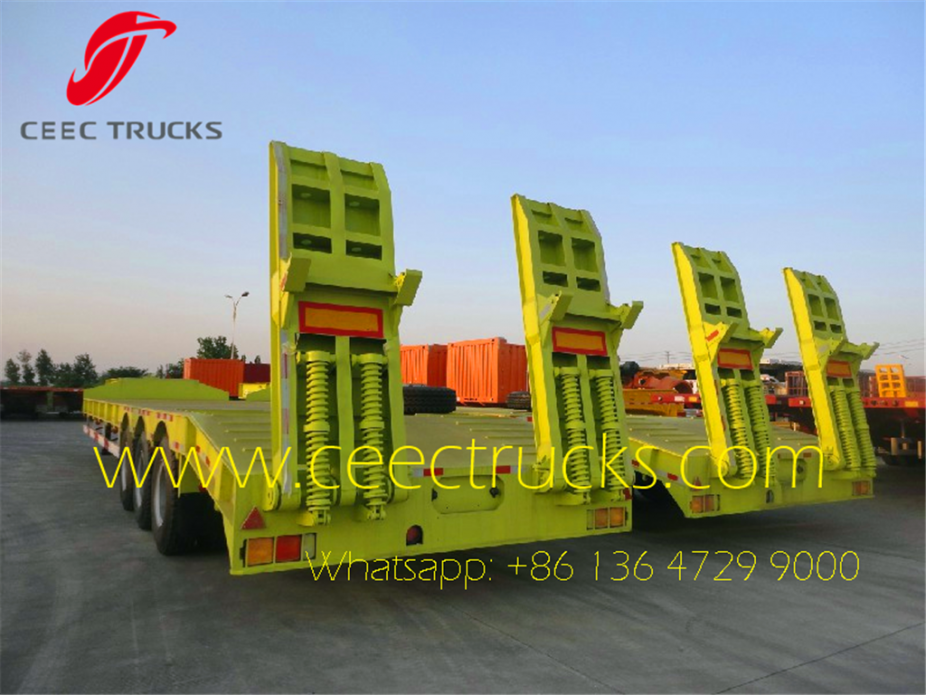

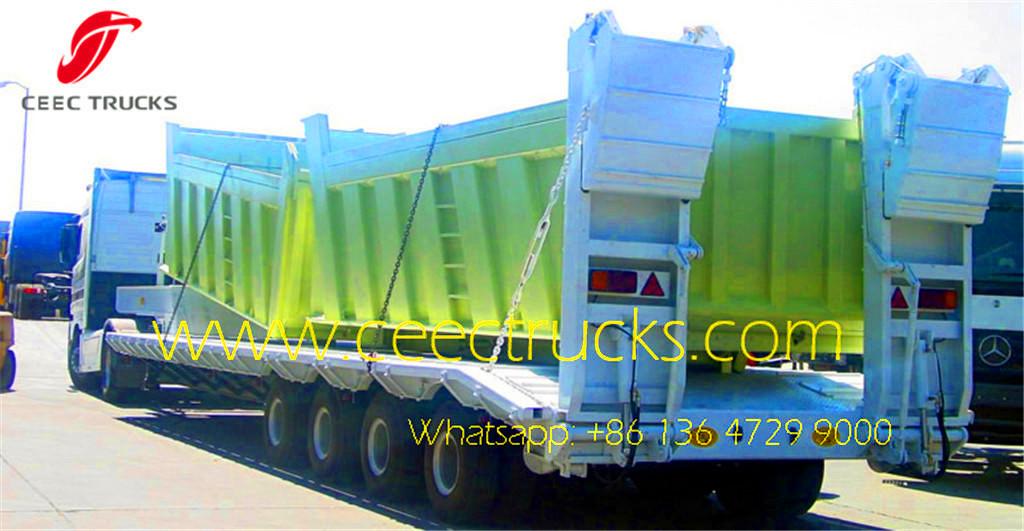

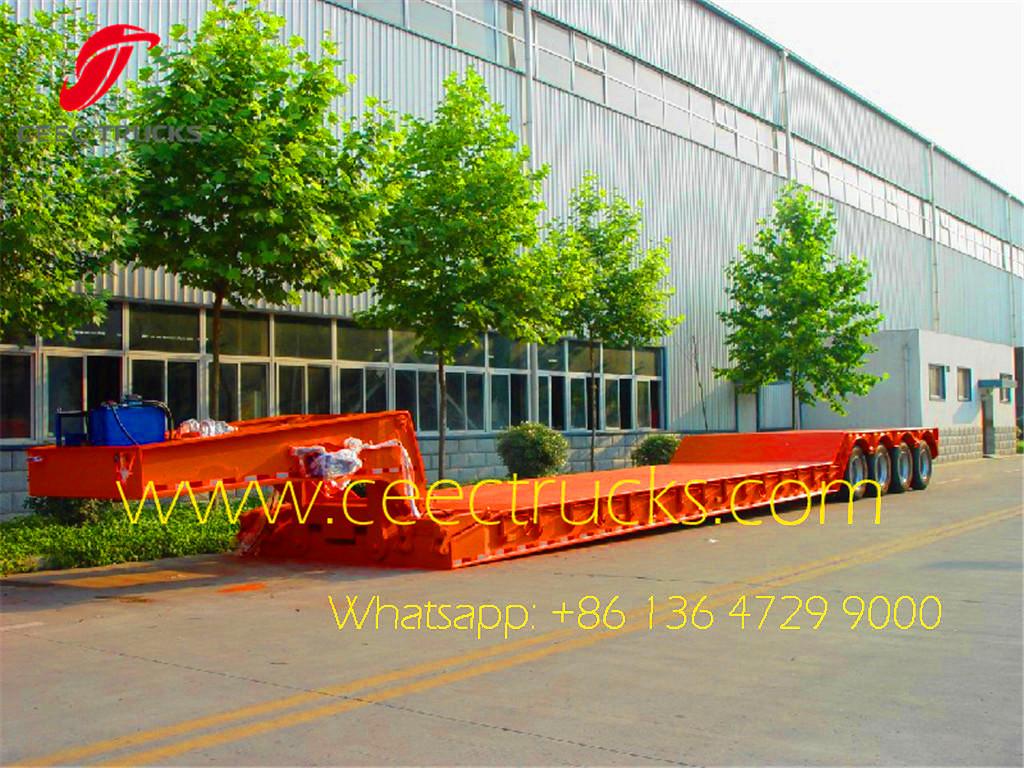

4 axle low bed semi trailer for heavy duty goods transportation:
Similar Key Works: 2 axle low bed semitrailer, 3 axle low bed trailers, 20 T bogie suspension trailer, 30T low bed semitrailers, 40T 2 axle heavy lowbed semitrailers
| DIMENSIONS | |
| Tare Weight | 8500kg |
| Payload | 40000kg |
| Total Weight | 48500kg |
| Overall Length | 13880mm |
| Overall Width | 3400mm |
| Overall Height | 3090mm |
| Wheel track | 2060mm |
| Wheelbase | 8500mm+1450mm |
| SPECIFICATION | |
| Main Frame | Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes, 500mmHeight, Top Flange 14mm,width 140mm; Middle Flange 8mm ;Bottom Flange 20mm, width 140mm |
| Axle | 2 Units of FUWA (brand) 13Ton axle. |
| Suspension | A couple of FUWA (brand) mechanical 3-axle suspension |
| Leaf Spring | 4 sets of reliable local brand, 8-piece leaf spring,16x90mm |
| King Pin | One unit of SAE 2`` standard kingpin |
| Landing Gear | Two-speed ,manual operation, heavy duty landing gear |
| Wheel Rim | 9 units 8.25-22.5 rim. |
| Tyre | 9 units 11R22.5 tubeless tyre. |
| Spare Wheel Carrier | One set of spare wheel carrier including a riser. |
| Pneumatic Braking System | Two units of WABCO RE 4 relay valve; six units of T30/30 chamber; two units of reliable local brand 40L air tank; two units of reliable local brand standard coppery air-connector. |
| Electrical System | 1. One unit of JAEGER POWAY,24V 7-pin ISO 1185 socket; two sets of reliable, local brand standard rear light, turn light, rear reflector, side light, side reflector etc. 2. One set of DAFA (brand ) 6-core standard Cable. |
| Painting | 1. Sand blasting before painting 2. Two coats of primer, anti-corrosion 3. One coat of finish painting 4. Color advised by client |
| Accessary | One box with a set of standard trailer tool |
China Best Semitrailer on sale
|
|
|
|
|
| |
| Axle | |||||
| Landing Gear | |||||
| Tire | |||||
| Payload | |||||
| Drive Type |
Other beiben trucks display
2, For the 2016 newly produced 3T low bed semitrailer, which equipped with Germany BPW axle, JOST C200 landing gear, two hydraulic lifting arm at rear to help to help trucks drive on to the semitrailer. Also can be used tequipped with air braking system, which made driving much more safety.
3, SKD and CKD for the semitrailers, which means the shipping cost would be much lower.

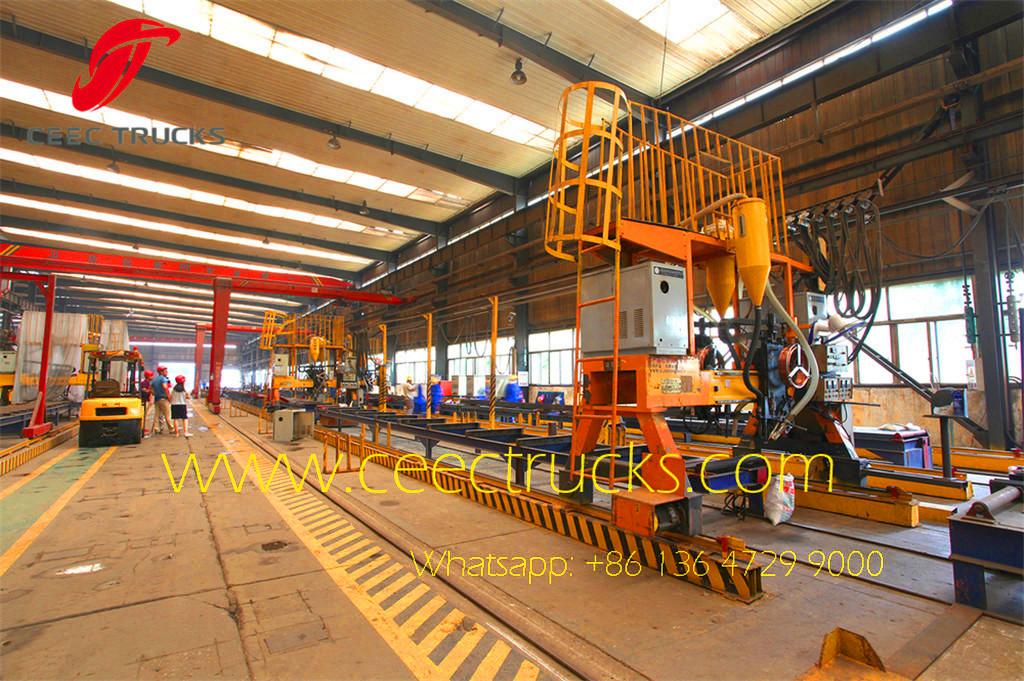

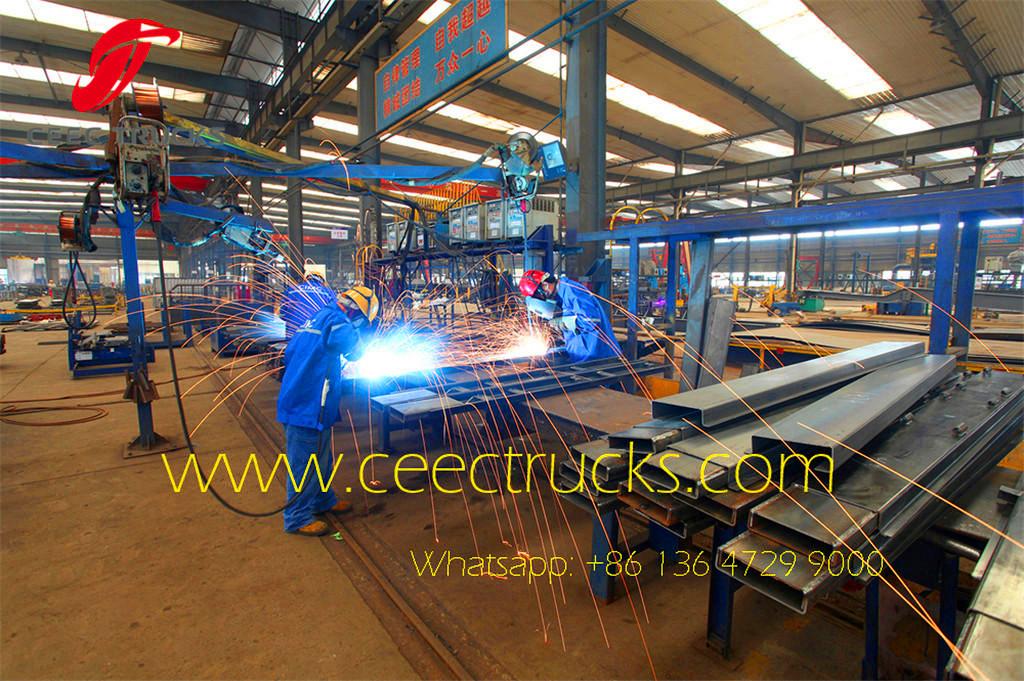

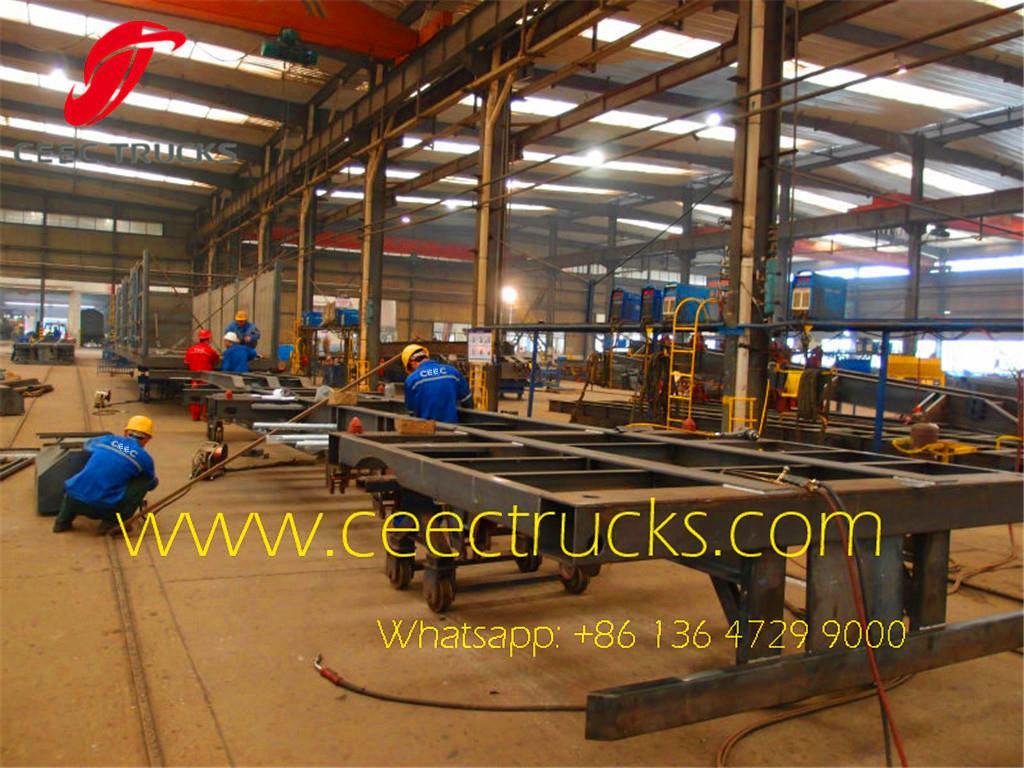

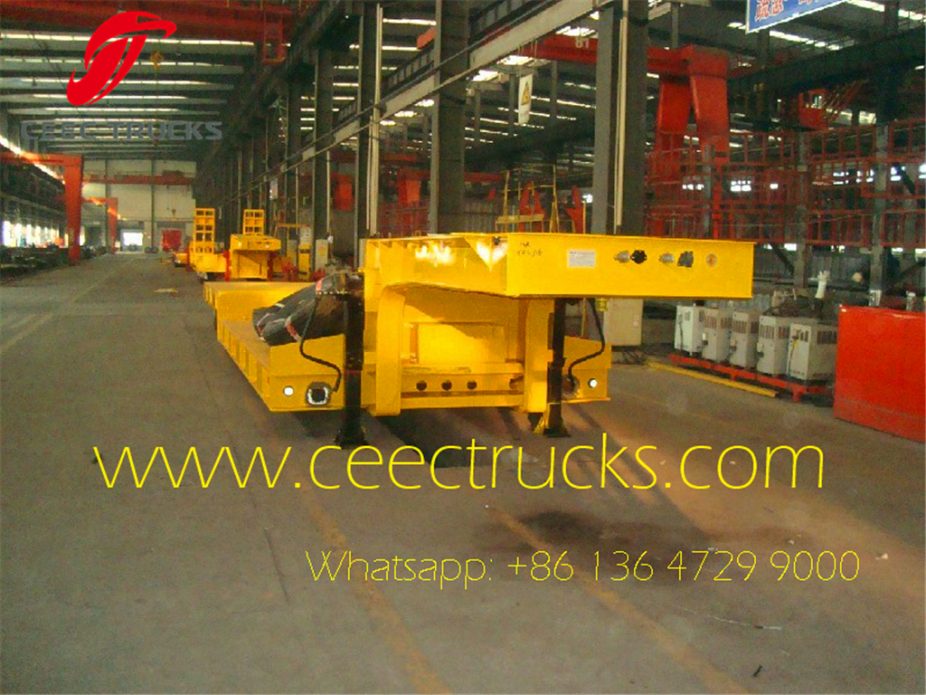

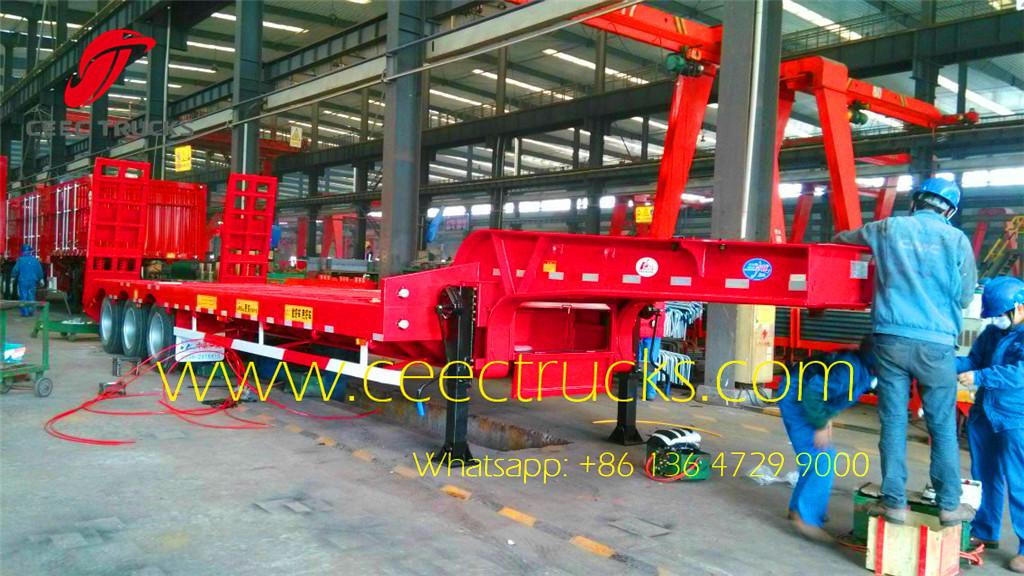

CEEC TRUCKS Low Bed Semitrailer Factory Plant
